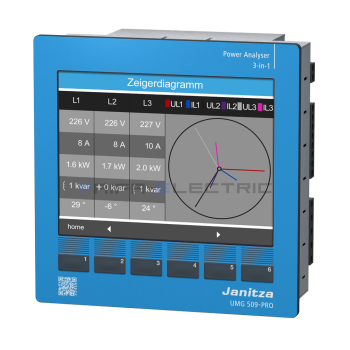

Janitza UMG 509-PRO Power quality analyzer Voltage quality analyzer UMG 509-PRO

Voltage quality analyzer UMG 509-PRO

The new PRO series combines the latest technology with outstanding functions and an attractive design. The greater variety of functions and extensive display methods make it easier to analyze and interpret measurement data and measurement results. With the help of the pre-installed Janitza-Apps data can be processed, visualized and analyzed.

This text is machine translated.

Facts

• Supply voltage 95 - 240V (50 - 60Hz); 80 - 280V DC
• Installation category: 300V CATIII
• 4 voltage measuring inputs,
• Measurement category: 600V CATIII
• Measurement in three-phase 4-wire systems up to 417V/720V,
• Measurement in three-phase 3-wire systems up to 600V,
• Measurement range: L - N: 10 - 600V; 40 - 70Hz
• Measuring range: L - L: 18 - 1000V; 40 - 70Hz
• 4 current measuring inputs for current transformers ../1 or ../5A
• Measurement range 0.001 .. 7Arms
• 2 digital inputs, 2 digital outputs
• 1 temperature input, 2 RCM inputs
• Data storage: 256MB Flash,
• Interfaces: RS485, Profibus DP V0, Ethernet 10/100 BaseTX
• Incl.Web-Server as well as the following APP`s:
• App Measured value monitor: Graphic display of online & historical measured values
• App IEC 61000-2-4 Watchdog Light PRO: Monitoring of the voltage quality limit values according to IEC 61000-2-4
• This text is machine translated.

Delivery

• Cross Patch cable, CAT5e, 2 m
• Slotted screwdriver, ESD
• RS485 terminating resistor 120 Ω
• Quick Guide UMG 604 (incl. safety instructions and Quick Guide software GridVis
• Installation and commissioning instructions
• 2x mounting clamps
