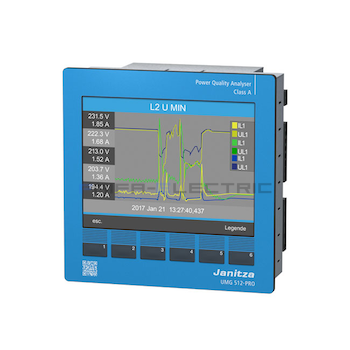

เครื่องวิเคราะห์คุณภาพไฟฟ้า Janitza UMG 512-PRO Class A power Quality Analyser

Class A power quality analyzer - highest accuracy, IEC 61000-4-30, EN 50160, IEEE519, large graphical LCD display, programmable in Jasic, flicker measurement, panel mounting or DIN rail, measurement up to 63 harmonics



Type	Janitza Electronic
Reading category	CAT III 600 V
Recess depth	170 mm
Product type	Power quality analyzer

Voltage quality analyzer UMG 512-PRO

The new PRO series combines the latest technology with outstanding functions and an attractive design. The greater variety of functions and extensive display methods make it easier to analyze and interpret measurement data and measurement results. With the help of the pre-installed Janitza-Apps data can be processed, visualized and analyzed.

This text is machine translated.

คุณสมบัติ

• Class A (IEC 61000-4-30) Power Quality Analyzer with RCM
• Supply voltage 95 - 240V (50/60Hz); 80 - 300V DC
• Installation category: 300V CATIII
• 4 voltage measuring inputs,
• Measurement category: 600V CATIII
• Measurement in three-phase 4-wire systems up to 417V/720V,
• Measurement in three-phase 3-wire systems up to 600V,
• 4 current measuring inputs for current transformers ../1 or ../5A
• Current measuring range 0.001 .. 7Arms
• 2 digital inputs, 2 digital outputs
• 1 temperature input, 2 RCM inputs
• Data storage: 256MB Flash,
• Interfaces: RS485, Profibus DP V0, Ethernet 10/100 BaseTX
• Incl.Web-Server as well as the following APP`s:
• App Measured value monitor: Graphic display of online & historical measured values
• App EN 50160 Watchdog PRO: Monitoring of the voltage quality limit values according to EN 50160
• App IEC 61000-2-4 Watchdog PRO: Monitoring of the voltage quality limit values according to IEC 61000-2-4
• This text is machine translated.
