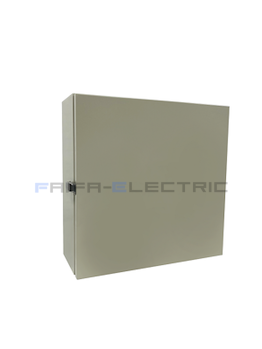

CAL12-33 "NITTO KOGYO" ขนาด W300xH300xD120 mm. ตู้เหล็กกันฝุ่นกันน้ำ IP65 ความหนาตัวตู้ 1.2 มม.

CAL12-33

อัตราค่าจัดส่ง

รายละเอียดสินค้า

CA SERIES

High IP enclosure

- IP65, higher dust-proof and water-proof

- 2 types of handle: double-bit cam lock and latch, which provides the largest area on the front surface

Color Light beige
Paint

Powder paint, smooth,

without E-coat

Material/Thickness

Steel/

Door and Body: 1.2mm

Mounting plate

Steel (t1.5mm)

Without grid line

Application/IP degree Indoor/Outdoor/IP65
Door Single door
Handle

- Double-bit cam lock

- Latch (can be locked with padlock)

spec

ข้อมูลสินค้า

CA SERIES



TH-Model Enclosure

CA SERIES

High IP enclosure
- IP65, higher dust-proof and water-proof
- 2 types of handle: double-bit cam lock and latch, which provides the largest area on the front surface



Color
Light beige
Paint
Powder paint, smooth,
without E-coat
Material/Thickness
Steel/
Door and Body: 1.2mm
Mounting plate
Steel (t1.5mm)
Without grid line
Application/IP degree
Indoor/Outdoor/IP65
Door
Single door
Handle
- Double-bit cam lock
- Latch (can be locked with padlock)


CA Series: Double-bit cam lock

Model
External dimensions
  (mm)
Mounting plate (mm)
Usable
Depth
(mm)
Weight
(kg)
Drawing Download
W
H
D
W1
H1
D1
CA16-33
300
300
160
250
250
143
5.1
CA16-34
300
400
160
250
350
143
6.4
CA16-43
400
300
160
350
250
143
6.4
CA16-44
400
400
160
350
350
143
8.0
CA16-45
400
500
160
350
450
143
9.5
CA16-54
500
400
160
450
350
143
9.5
CA16-55
500
500
160
450
450
143
11.4
CA20-33
300
300
200
250
250
183
5.7
CA20-34
300
400
200
250
350
183
7.0
CA20-43
400
300
200
350
250
183
7.0
CA20-44
400
400
200
350
350
183
8.7
CA20-45
400
500
200
350
450
183
10.3
CA20-54
500
400
200
450
350
183
10.3
CA20-55
500
500
200
450
450
183
12.3
CA25-33
300
300
250
250
250
233
6.2
CA25-34
300
400
250
250
350
233
7.8
CA25-43
400
300
250
350
250
233
7.8
CA25-44
400
400
250
350
350
233
9.6
CA25-45
400
500
250
350
450
233
11.2
CA25-54
500
400
250
450
350
233
11.2
CA25-55
500
500
250
450
450
233
13.4


CAL series: Latch type

Model
External dimensions
  (mm)
Mounting plate (mm)
Usable
Depth
(mm)
Weight
(kg)
Drawing Download
W
H
D
W1
H1
D1
CAL12-152
150
200
120
100
150
103
2.0
CAL12-22
200
200
120
150
150
103
2.5
CAL12-225
200
250
120
150
200
103
3.0
CAL12-23
200
300
120
150
250
103
3.3
CAL12-252
250
200
120
200
150
103
2.9
CAL12-2525
250
250
120
200
200
103
3.4
CAL12-253
250
300
120
200
250
103
4.0
CAL12-32
300
200
120
250
150
103
3.3
CAL12-33
300
300
120
250
250
103
4.6
CAL12-34
300
400
120
250
350
103
5.7
CAL12-43
400
300
120
350
250
103
5.8
CAL16-33
300
300
160
250
250
143
5.1
CAL16-44
400
400
160
350
350
143
8.0
CAL16-55
500
500
160
450
450
143
11.4
CAL20-33
300
300
200
250
250
183
5.7
CAL20-44
400
400
200
350
350
183
8.7
CAL20-55
500
500
200
450
450
183
12.3
CAL25-33
300
300
250
250
250
233
6.2
CAL25-44
400
400
250
350
350
233
9.6
CAL25-55
500
500
250
450
450
233
13.4


Opetional accessory

■Mounting rail
  - Alternative of mounting plate
  - For attaching DIN rail and a panel
Model
Height of applicable
enclosure
Drawing
CXN-3
300mm
CXN-4
400mm
CXN-5
500mm

■Side mounting rail
  - Attachable onto the side hole
  *Not applicable to D120 enclosure
  *DIN rail is not included
Model
Height of applicable
enclosure
Drawing
CXL-3
300mm
CXL-4
400mm
CXL-5
500mm
