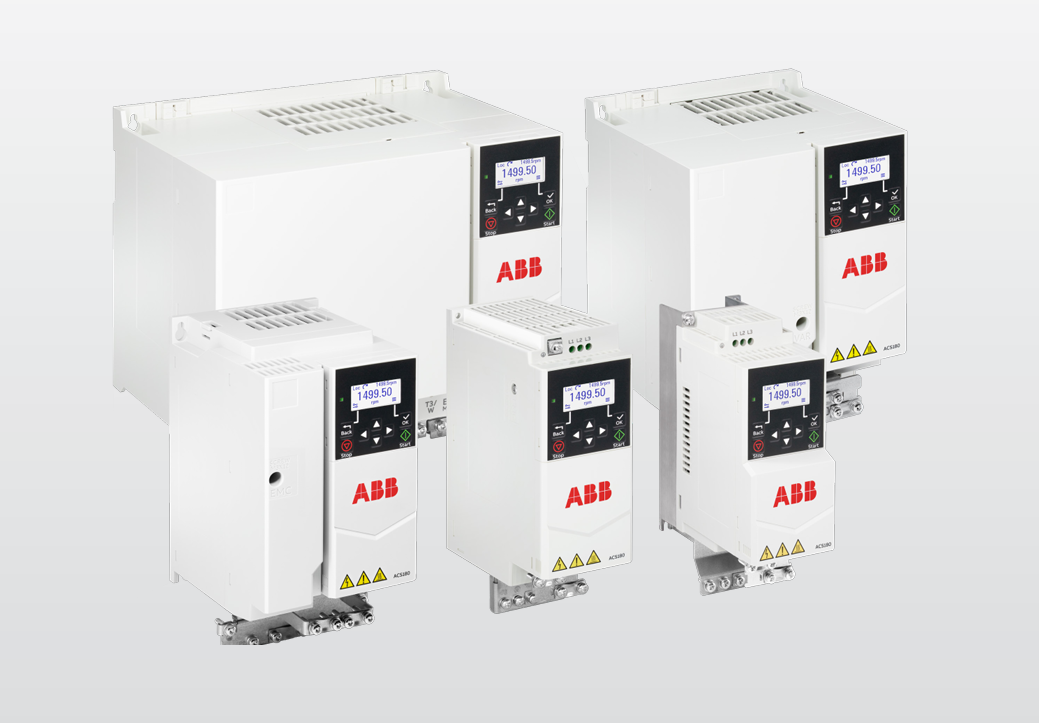

ACS180-04S-12A6-4 LV AC machinery drive module, IEC: Pn 5.5 kW, 12.6 A, 400 V, UL: Pld 7.5 Hp, 11.0 A, 460 V

ข้อมูลสินค้า

ABB machinery drives

 ACS180, 1/3 to 30 HP (0.25 to 22 kW)

1-phase, U_n = 230 V (range 200 to 240 V)

3-phase, U_n = 230 V (range 200 to 240 V)

Notes:
1-phase 200 to 240 V: Class C2
3-phase 200 to 240 V: Class C3 (no built-in EMC filter)
3-phase 380 to 480 V: Class C3
Note:
Light-overload use: Continuous current allowing 110% I_ld for 1 minute every 10 minutes at 50°C.
Heavy-duty use: Continuous current allowing 150% I_hd for 1 minute every 10 minutes at 50°C.
I_ld: Continuous current in light-overload use
I_hd: Continuous current in heavy-duty use
I_max: Maximum output current (available for 2 seconds at start, then as long as allowed by drive temperature)

3-phase, U_n = 400 V (range 380 to 480 V)

Notes:
1-phase 200 to 240 V: Class C2
3-phase 200 to 240 V: Class C4 (no built-in EMC filter)
3-phase 380 to 480 V: Class C3

Note:
Light-overload use:
I_ld = Continuous current allowing 110% I_ld for 1 minute every 10 minutes at 50°C.
P_ld = Typical motor power in light-overload use.

Heavy-duty use:
I_hd = Continuous current allowing 150% I_hd for 1 minute every 10 minutes at 50°C.
P_hd = Typical motor power in heavy-duty use.

Maximum output current:
I_max = Maximum output current. Available for 2 seconds at start, then as allowed by drive temperature.

The ratings apply at 50°C ambient temperatures.
For derating at higher altitudes, temperatures or switching frequencies, see the user's HW manual, document code: 3AXD50000467945
