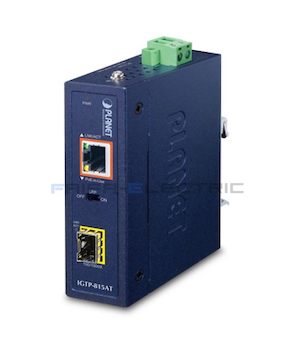

Planet IGTP-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter

10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance

Auto-negotiation, auto MDI/MDI-X with PoE injector function

1000BASE-SX/LX/BX SFP interface

Compatible with 100BASE-FX SFP

Back pressure for half duplex mode

IEEE 802.3x pause frame for full duplex mode

9K

System: Power (Green)

Fiber 100/1000BASE-X: LNK/ACT (Green)

TP 10/100/1000BASE-T: LNK/ACT (Green)

PoE: Power-in-use (Amber)

30 x 70 x 104 mm

231g

DC 48~56V, supports reverse polarity protection

(>51V DC for PoE+ output recommended)

System ON without loading

DC 48V: 0.96W/3.27BTU

DC 56V: 1.12W/3.82BTU

Full loading with PoE

DC 48V:35W/119BTU(PoE:30W)

DC 56V:42W/143BTU(PoE: 36W)

Off: LFP (Link Fault Passthrough) disable

On: LFP (Link Fault Passthrough) enable

FEF (Far End Fault) works with LFP to prevent data loss

The DIP switch is turned off by default

IP30 metal case

DIN-rail kit and wall-mount ear

6KV DC

10/100/1000BASE-T:

　2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)

　EIA / TIA-568 100-ohm STP (maximum 100 meters)

100BASE-FX/1000BASE-SX/LX:

　Multi-mode: 50/125μm or 62.5/125μm optical fiber

　Single-mode: 9/125μm optical fiber

IEEE 802.3at Power over Ethernet Plus

48~56V DC: 36 watts max.

End-span

1/2(+), 3/6(-)

36 watts

FCC Part 15 Class A, CE

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3x Flow Control

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEC60068-2-32 (free fall)

IEC60068-2-27 (shock)

IEC60068-2-6 (vibration)

Operating: -40~75 degrees C

Storage: -40~85 degrees C

Operating: 5~90% (non-condensing)

Storage: 5~90% (non-condensing)
