| Type | Book type |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 480 W |
| Efficiency | 92 % |
| Output voltage | 24 V |
| Rated output current | 20 A |
| Temperature range | -25-60 °C |
| Terminal | Screw |
| Communication port(s) | None |
| Alarm function | - |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 90-350 V |
| Width | 95 mm |
| Height | 125 mm |
| Depth | 140 mm |
Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.
Note: For details on normal stock models, contact your nearest OMRON representative.
| Power ratings | Input voltage | Output Voltage (VDC) | Output current *1 | Model number |
|---|---|---|---|---|
| 60 W | Single phase 100 to 240 VAC 90 to 350 VDC |
24 V | 2.5 A | S8VK-C06024 |

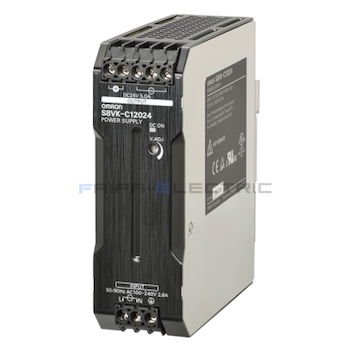

| 120 W | 24 V | 5 A | S8VK-C12024 | |
| 240 W | 24 V | 10 A | S8VK-C24024 | |

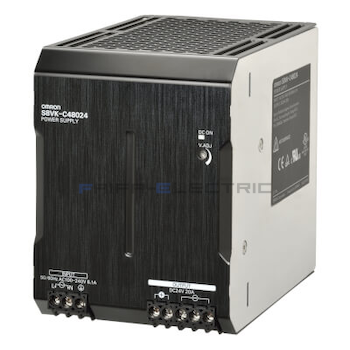

| 480 W | 24 V | 20 A | S8VK-C48024 |
*1. For rated output current of DC input, refer to Derating Curve on Data Sheet.
| Name | Model |
|---|---|
| Front-mounting bracket (for 60 W models) | S82Y-VS10F |
| Front-mounting bracket (for 120, 240 and 480 W models) | S82Y-VK10F |
| Side-mounting bracket (for 60 W models) | S82Y-VS10S |
| Side-mounting bracket (for 120 W models) | S82Y-VK10S |
| Side-mounting bracket (for 240 W models) | S82Y-VK20S |
| Power ratings | 60 W | 120 W | 240 W | 480 W | ||
|---|---|---|---|---|---|---|
| Output voltage (VDC) | 24 V | 24 V | 24 V | 24 V | ||
| Efficiency (Typical) | 230 VAC input | 0.88 | 0.88 | 0.87 | 0.91 | |
| Input | Voltage *1 | 100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6 | ||||
| Frequency *1 | 50/60 Hz (47 to 450 Hz) | 50/60 Hz (47 to 63 Hz) | ||||
| Current (Typical) |
115 VAC input | 1.0 A | 2.2 A | 2.5 A | 4.8 A | |
| 230 VAC input | 0.7 A | 1.4 A | 1.3 A | 2.4 A | ||
| Power factor (Typical) *7 |
230 VAC input | 0.44 | 0.45 | 0.92 | 0.97 | |
| Harmonic current emissions | --- | Conforms to EN61000-3-2 | ||||
| Leakage current (Typical) |
115 VAC input | 0.19 mA | 0.19 mA | 0.24 mA | 0.26 mA | |
| 230 VAC input | 0.34 mA | 0.36 mA | 0.54 mA | 0.65 mA | ||
| Inrush current (Typical) *2 |
115 VAC input | 16 A | ||||
| 230 VAC input | 32 A | |||||
| Output | Voltage adjustment range *3 |
-10% to 15% (with V.ADJ) (guaranteed) | ||||
| Ripple at 20 MHz (Typical) *4 |
230 VAC input | 70 mV | 120 mV | 150 mV | 130 mV | |
| Input variation influence | 0.5% max. (at 85 to 264 VAC input, 100% load) | |||||
| Load variation Influence (Rated Input voltage) |
1.5% max., at 0% to 100% load | |||||
| Temperature variation influence |
0.05%/°C max. | |||||
| Start up time (Typical) *2 |
115 VAC input | 530 ms | 800 ms | 790 ms | 770 ms | |
| 230 VAC input | 410 ms | 760 ms | 750 ms | 670 ms | ||
| Hold time (Typical) *2 |
115 VAC input | 24 ms | 27 ms | 34 ms | 21 ms | |
| 230 VAC input | 117 ms | 128 ms | 36 ms | 22 ms | ||
| Additional functions |
Overload protection *2 | 105% to 160% of rated load current | ||||
| Overvoltage protection *2 | Yes *5 | |||||
| Parallel operation | No | |||||
| Series operation | Possible for up to two Power Supplies (with external diode) | |||||
| Others | Ambient operating temperature |
-25 to 60°C (Refer to Engineering Data) | ||||
| Storage temperature | -25 to 65°C | |||||
| Ambient operating humidity | 20% to 90% (Storage humidity: 10% to 95%) | |||||
| Dielectric strength (detection current: 20 mA) |
3.0 kVAC for 1 min. (between all inputs and outputs) 2.0 kVAC for 1 min. (between all inputs and PE terminal) 1.0 kVAC for 1 min. (between all outputs and PE terminal) |
|||||
| Insulation resistance | 100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC | |||||
| Vibration resistance | 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions |
|||||
| 10 to 150 Hz, 0.35-mm single amplitude (5 G max for 60W, 120W, 240 W, 3 G max for 480 W) for 80 min. each in X, Y, and Z directions |
||||||
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | |||||
| Output indicatior | Yes (color: green), lighting from 80% to 90% or more of rated voltage | |||||
| EMI | Conducted Emission |
Conforms to EN61204-3 EN55011 Class A and based on FCC Class A | ||||
| Radiated Emission |
Conforms to EN61204-3 EN55011 Class A | |||||
| EMS | Conforms to EN61204-3 high severity levels | |||||
| Safety standards | UL Listed: UL508 (Listing) UL UR: UL No. 62368-1 (Recognition) cUL: CSA C22.2 No.107.1 cUR: CSA C22.2 No.62368-1 EN: EN 62477-1, EN 62368-1 BIS: IS 13252 (Part1) |
|||||
| Fulfilled Standards | SELV (EN 62368-1/EN 62477-1/UL No. 62368-1) | |||||
| Degree of protection | IP20 by EN/IEC60529 | |||||
| SEMI | F47-0706 (200 to 240 VAC) | |||||
| Weight | 260 g | 580 g | 940 g | 1,550 g | ||
*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the
rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment
range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that
the load is not damaged.
*4. A characteristic when the ambient operating temperature is between –25 to 60°C.
*5. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*6. Safety Standard for a DC Input
The following safety standards apply to a DC input: UL No. 62368-1, cUR (CSA C22.2 No.62368-1), EN 62477-1, EN62368-1.
For a DC input, safety is ensured by external fuse.
Select an external fuse the meets the following conditions.
S8VK-C06024: 350 VDC min, 6A
S8VK-C12024: 350 VDC min, 8A
S8VK-C24024: 350 VDC min, 8A
S8VK-C48024: 350 VDC min, 12A
*7. The value is when both rated output voltage and rated output current are satisfied.
| Product | Description | |
|---|---|---|
| Book type power supply, Lite, 60 W, 24VDC, 2.5A, DIN rail mounting |
|
|
| Book type power supply, Lite, 120 W, 24VDC, 5A, DIN rail mounting |
|
|
| Book type power supply, Lite, 240 W, 24VDC, 10A, DIN rail mounting |
|
|
| Book type power supply, Lite, 480 W, 24VDC, 20A, DIN rail mounting |
