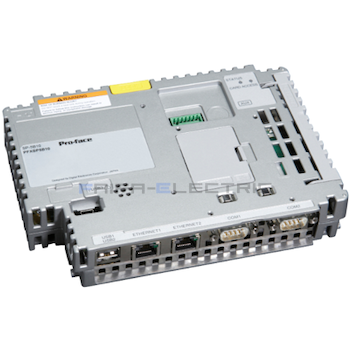

PFXSP5B10 64 MB SD Card NVRAM 320 KB 2 Ethernets 2 Serials SP-5B10 Power Box Module

PFXSP5B10

แบรนด์ : Pro-face สินค้า HMI ซีรีย์ : SP5000 Series

฿ 32500.00

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Functional Specifications

Supported OS	Real Time OS
Application Memory	SD card
Data Backup	NVRAM 512 KB
Serial (COM1)	RS-232C/422/485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits Parity: None, odd, or even, Data Transmission Speed: 2,400（1,200（（ 115,200bps Connector: D-Sub 9 pin (plug)
Serial (COM2)	RS-232C/422/485, Data Length: 7 or 8 bits Stop Bit: 1 or 2 bits Parity: None, odd, or even Data Transmission Speed: 2,400(1,200)...115,200 bps, 187,500bps (MPI) Connector: D-Sub 9 pin (plug
Ethernet (LAN)	Standard: IEEE802.3i/IEEE802.3u/IEEE802.3ab, 10BASE-T/100BASE-TX/1000BASE-T Connector: Modular jack (RJ-45) x 2
USB (TYPE-A)	Type A (V2.0) x2
USB (mini-B)	Mini B (V2.0) x1
SD Card	SD Card Slot (System) x 1, SD Card Slot (Storage) x 1
AUX/Expansion Unit	Speaker Output: 300mW (Rated Load: 8Ω, Frequency : 1kHz) LINE Output: Rated load: 10kΩ or more Connector: 2-piece terminal block (AUX) x 1

General Specifications

International Safety Standards
Rated Input Voltage	12Vdc (Supply from Display Module)
Input Voltage Limits	10.8 to 28.8 Vdc
Allowable Voltage Drop	12 Vdc: 1.25 ms or less 24 Vdc: 5 ms or less
Power Consumption	25W (max), 12.5W or less (when power is not supplied to external devices)
In-Rush Current	30 A or less
Voltage Endurance	1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
Insulation Resistance	500 Vdc, 10 MΩ or more (between charging and FG terminals)
Surrounding Air Temperature	0 to 60 °C (32 to 140 °F)
Storage Temperature	-20 to 60 °C (-4 to 140 °F)
Storage Humidity	10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust	0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution Degree	For use in Pollution Degree 2 environment
Atmosphere	800 to 1,114 hPa (2,000 m [6,561 ft] or lower)
Vibration Resistance	IEC/EN 61131-2 compliant
Noise Immunity	Noise Voltage: 1,000 Vp-p Pulse Duration: 1 μs Rise Time: 1 ns (via noise simulator)
Electrostatic Discharge Immunity	Contact Discharge Method: 6 kV (IEC/EN 61000-4-2 Level 3)
Weight Approx.	0.9kg[1.98lb] or less
External Dimensions	W188xH131xD45m[W7.4 x H5.16 x D1.77 in.]

External Dimensions

ข้อมูลสินค้า

SP5000 Series Lineup / Specifications

Module Configuration

Premium Display	Advanced Display	Open Box	Power Box	Standard Box
Industry's top-class display with high display quality and versatile functions	Sophisticated display with high display quality	Enable to use Windows Applications via HMI	Reliable real-time OS installed in HMI High performance & Extended HMI	Reliable real-time OS installed in HMI High performance HMI
SP-5800WC, SP-5700WC, SP-5700TP, SP-5660TP, SP-5600TP, SP-5500TP	SP-5600TA, SP-5600WA, SP-5500WA, SP-5400WA	SP-5B41 (End of Sale: Apr 30, 2025) SP-5B411 SP-5B412	SP-5B10	SP-5B00
Specifications about Display Module		Specifications about Box Module

Display Module

Display Type	Product Name	Model No.	Display Size	Display Colors	Touch Panel Type	Front USB	Brightness Sensor	Auto Scaling	Details
Premium	SP-5800WC ^*1	PFXSP5800WCD	19" Wide (FWXGA)	16 million	Projected Capacitive (multi-touch)	Yes	Yes	Yes	Datasheet （PDF）
	SP-5700WC ^*1	PFXSP5700WCD	15" Wide (FWXGA)		Projected Capacitive (multi-touch)
	SP-5700TP	PFXSP5700TPD	15" (XGA)		Analog Resistive Film (multi-touch)
	SP-5660TP ^*2	PFXSP5660TPD	12" (XGA)
	SP-5600TP	PFXSP5600TPD	12" (XGA)
	SP-5500TP	PFXSP5500TPD	10" (SVGA)
Advanced	SP-5600TA	PFXSP5600TAD	12" (XGA)	262,144	Analog Resistive Film	No	No	No
	SP-5600WA	PFXSP5600WAD	12" Wide (WXGA)
	SP-5500WA	PFXSP5500WAD	10" Wide (WXGA)
	SP-5400WA	PFXSP5400WAD	7" Wide (WVGA)

*1SP-5800WC, SP-5700WC and SP-5600TA are not compatible with SP-5B40 (End of Sale: Mar. 30, 2018).

*2SP-5660TP is not compatible with SP-5B10 (Power Box) and SP-5B00 (Standard Box).

Box Module

Box Type		Product Name	Model No.	Windows Application	Expansion Unit	Sound Output	AUX Output	Details
Open	WES 7	SP-5B41 (End of Sale: Apr 30, 2025)	PFXSP5B41*	Yes	Yes	Yes	Yes	Datasheet （PDF）
	Windows 10 (HMI Runtime not inclueded)	SP-5B411
	Windows 10 (HMI Runtime inclueded)	SP-5B412
Power		SP-5B10 ^*3	PFXSP5B10	-
Standard		SP-5B00 ^*3	PFXSP5B00	-	-	-	-

*3SP-5B10 (Power Box) and SP-5B00 (Standard Box) are not compatible with SP-5660TP.

Display Module x Box Module

Screen Size	Product Name	Bright- ness Sensor/ Auto Scaling/ Front USB/ Multi- touch	Win- dows Apps	Video/ Sound	Remov- able System	CFast (Stor- age)	SD (Stor- age)	USB Type A	USB mini B	SIO	Ether -net	Rated Voltage	Details
19" Wide (FWXGA)	SP-5800WC + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5800WC + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5800WC + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
15" Wide (FWXGA)	SP-5700WC + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700WC + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700WC + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
15" (XGA)	SP-5700TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700TP + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700TP + SP-5B411 / SP-5B412	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
12" (XGA) Wireless LAN Model	SP-5660TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
12" (XGA)	SP-5600TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TP + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TP + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
12" (XGA)	SP-5600TA + SP-5B411 / SP-5B412	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
12" Wide (WXGA)	SP-5600WA + SP-5B411 / SP-5B412	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600WA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600WA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
10" (SVGA)	SP-5500TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500TP + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500TP + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
10" Wide (WXGA)	SP-5500WA + SP-5B41	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500WA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500WA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
7" Wide (WVGA)	SP-5400WA + SP-5B411 / SP-5B412	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5400WA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5400WA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
