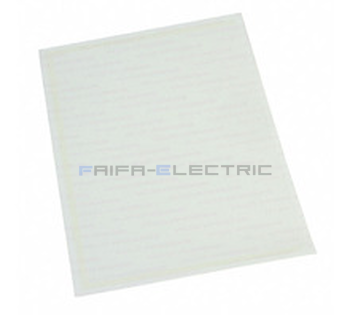

Protective sheets for NB7W (5 sheets)
ข้อมูลสินค้า
HMI panels
|
Product name
|
Specifications
|
Order code
|
|
NB3Q
|
3.5 inch, TFT LCD, Color, 320 × 240 dots
|
NB3Q-TW00B
|
|
3.5 inch, TFT LCD, Color, 320 × 240 dots, USB Host, Ethernet
|
NB3Q-TW01B
|
|
NB5Q
|
5.6 inch, TFT LCD, Color, 320 × 234 dots
|
NB5Q-TW00B
|
|
5.6 inch, TFT LCD, Color, 320 × 234 dots, USB Host, Ethernet
|
NB5Q-TW01B
|
|
NB7W
|
7 inch, TFT LCD, Color, 800 × 480 dots
|
NB7W-TW00B
|
|
7 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet
|
NB7W-TW01B
|
| 7 inch, TFT LCD, Color, 800 × 480 dots, Ethernet only |
NB7W-TW11B |
|
NB10W
|
10.1 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet
|
NB10W-TW01B
|
Options
| Product name |
Specifications |
Model |
| Software |
Supported Operating Systems:
Windows 10, Windows 8.1, Windows 8, Windows 7,
Windows Vista®, Windows XP (SP3 or higher).
Note: Except for Windows XP 64-bit version
Download from Omron's regional websites. |
NB-Designer * |
| NB-to-PLC Connecting cable |
For NB to PLC via RS-232C (CP/CJ/CS), 2 m |
XW2Z-200T |
| For NB to PLC via RS-232C (CP/CJ/CS), 5 m |
XW2Z-500T |
| For NB to PLC via RS-422A/485, 2 m |
NB-RSEXT-2M |
| Display protective sheets |
For the NB3Q contains 5 sheets |
NB3Q-KBA04 |
| For the NB5Q contains 5 sheets |
NB5Q-KBA04 |
| For the NB7W contains 5 sheets |
NB7W-KBA04 |
| For the NB10W contains 5 sheets |
NB10W-KBA04 |
| Attachment |
Mounting bracket for NT31/NT31C series to NB5Q series |
NB5Q-ATT01 |
Specifications
HMI
|
Specifications
|
NB3Q
|
NB5Q
|
NB7W
|
NB10W
|
|
TW00B
|
TW01B
|
TW00B
|
TW01B
|
TW00B
|
TW01B
|
TW01B
|
|
Display type
|
3.5 inch TFT LCD
|
5.6 inch TFT LCD
|
7 inch TFT LCD
|
10.1 inch TFT LCD
|
|
Display resolution (H×V)
|
320×240
|
320×234
|
800×480
|
800×480
|
|
Number of colors
|
65,536
|
|
Backlight
|
LED
|
|
Backlight lifetime
|
50,000 hours of operating time at the normal temperature (25 ° C)
|
|
Touch panel
|
Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations
|
|
Dimensions in mm (H×W×D)
|
103.8×129.8×52.8
|
142×184×46
|
148×202×46
|
210.8×268.8×54.0
|
|
Weight
|
310 g max.
|
315 g max.
|
620 g max.
|
625 g max.
|
710 g max.
|
715 g max.
|
1,545 g max.
|
Functionality
|
Specifications
|
NB3Q
|
NB5Q
|
NB7W
|
NB10W
|
|
TW00B
|
TW01B
|
TW00B
|
TW01B
|
TW00B
|
TW01B
|
TW01B
|
|
Internal memory
|
128MB (including system area)
|
|
Memory interface
|
−
|
USB
Memory
|
−
|
USB
Memory
|
−
|
USB
Memory
|
USB
Memory
|
|
Serial (COM1)
|
RS-232C/422A/485 (not isolated),
Transmission distance:
15m Max. (RS-232C),
500m Max. (RS-422A/485),
Connector: D-Sub 9-pin
|
RS-232C,
Transmission distance: 15 m Max.,
Connector: D-Sub 9-pin
|
|
Serial (COM2)
|
−
|
RS-232C/422A/485 (not isolated),
Transmission distance: 15m Max. (RS-232C),
500m Max. (RS-422A/485),
Connector: D-Sub 9-pin
|
|
USB Host
|
Equivalent to USB 2.0 full speed, type A, Output power 5V, 150mA
|
|
USB Slave
|
Equivalent to USB 2.0 full speed, type B, Transmission distance: 5m
|
|
Printer connection
|
PictBridge support
|
|
Ethernet
|
−
|
10/100 base-T
|
−
|
10/100 base-T
|
−
|
10/100 base-T
|
10/100 base-T
|
General
|
Specifications
|
NB3Q
|
NB5Q
|
NB7W
|
NB10W
|
|
TW00B
|
TW01B
|
TW00B
|
TW01B
|
TW00B
|
TW01B
|
TW01B
|
|
Line voltage
|
20.4 to 27.6 VDC (24 VDC −15 to 15%)
|
|
Power consumption
|
5 W
|
9 W
|
6 W
|
10 W
|
7 W
|
11 W
|
14 W
|
|
Battery lifetime
|
5 years (at 25 ° C)
|
|
Enclosure rating (front side)
|
Front operation part: IP65 (Dust proof and drip proof only from the front of the panel)
|
|
Obtained standards
|
EC Directives, KC, cUL508
|
|
Operating environment
|
No corrosive gases.
|
|
Noise immunity
|
Compliant with IEC61000-4-4, 2KV (Power cable)
|
|
Ambient operating temperature
|
0 to 50 ° C
|
|
Ambient operating humidity
|
10% to 90% RH (without condensation)
|
