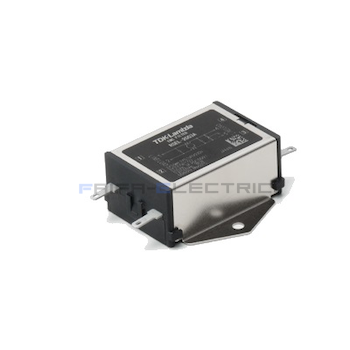

NOISE FILTER AC250V 1A AC/DC Low-leakageข้อมูลสินค้า
RSEL Series
Please understand that the technical data posted here may be changed without notice.
| Model | Specification | Outline | Reliability Data | |
|---|---|---|---|---|
| 2D | 3D | |||
|
RSEL-20R5W
|
||||
|
RSEL-2001W
|
||||
|
RSEL-2002W
|
||||
|
RSEL-2003W
|
||||
|
RSEL-2006W
|
||||
|
RSEL-20R5A
|
||||
|
RSEL-2001A
|
||||
|
RSEL-2002A
|
||||
|
RSEL-2003A
|
||||
|
RSEL-2006A
|
||||
|
RSEL-20R5WL
|
||||
|
RSEL-2001WL
|
||||
|
RSEL-2002WL
|
||||
|
RSEL-2003WL
|
||||
|
RSEL-2006WL
|
||||
|
RSEL-20R5AL
|
||||
|
RSEL-2001AL
|
||||
|
RSEL-2002AL
|
||||
|
RSEL-2003AL
|
||||
|
RSEL-2006AL
|
||||
| Images | Part No. | Series / Type | Power Supply | Rated Voltage [AC] / V | Rated Voltage [DC] / V | Rated Current / A | Performance | Option | Package / Mounting | Terminals | Function | L(Nom.) / mm | W(Nom.) / mm | T(Nom.) / mm | Safety Standard |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Single-phase | 250 | 250 | 1 | Multipurpose | Lug Terminal | Small size | Tab | 50 | 45 | 20 |
|
|||
|
Single-phase | 250 | 250 | 1 | Multipurpose |
|
Small size | Tab | Low leakage current | 50 | 45 | 20 |
|
||
|
Single-phase | 250 | 250 | 1 | Multipurpose |
|
Small size | Wire | 32 | 68 | 23 |
|
|||
|
Single-phase | 250 | 250 | 1 | Multipurpose | Wire | Small size | Wire | 50 | 45 | 20 |
|
|||
|
Single-phase | 250 | 250 | 1 | Multipurpose |
|
Small size | Wire | Low leakage current | 50 | 45 | 20 |
|
||
|
Single-phase | 250 | 250 | 2 | Multipurpose | Lug Terminal | Small size | Tab | 50 | 45 | 20 |
|
|||
|
Single-phase | 250 | 250 | 2 | Multipurpose |
|
Small size | Tab | Low leakage current | 50 | 45 | 20 |
|
||
|
Single-phase | 250 | 250 | 2 | Multipurpose |
|
Small size | Wire | 32 | 68 | 23 |
|
|||
|
Single-phase | 250 | 250 | 2 | Multipurpose | Wire | Small size | Wire | 50 | 45 | 20 |
|
|||
|
Single-phase | 250 | 250 | 2 | Multipurpose |
|
Small size | Wire | Low leakage current | 50 | 45 | 20 |
|
||
|
Single-phase | 250 | 250 | 3 | Multipurpose | Lug Terminal | Small size | Tab | 50 | 45 | 20 |
|
|||
|
Single-phase | 250 | 250 | 3 | Multipurpose |
|
Small size | Tab | Low leakage current | 50 | 45 | 20 |
|
||
|
Single-phase | 250 | 250 | 3 | Multipurpose |
|
Small size | Wire | 38 | 74 | 30 |
|
|||
|
Single-phase | 250 | 250 | 3 | Multipurpose | Wire | Small size | Wire | 50 | 45 | 20 |
|
|||
|
Single-phase | 250 | 250 | 3 | Multipurpose |
|
Small size | Wire | Low leakage current | 50 | 45 | 20 |
|
||
|
Single-phase | 250 | 250 | 5 | Multipurpose |
|
Small size | Wire | 38 | 74 | 30 |
|
|||
|
Single-phase | 250 | 250 | 6 | Multipurpose | Lug Terminal | Small size | Tab | 50 | 45 | 20 |
|
|||
|
Single-phase | 250 | 250 | 6 | Multipurpose |
|
Small size | Tab | Low leakage current | 50 | 45 | 20 |
|
||
|
Single-phase | 250 | 250 | 6 | Multipurpose | Wire | Small size | Wire | 50 | 45 | 20 |
|
|||
|
Single-phase | 250 | 250 | 6 | Multipurpose |
|
Small size | Wire | Low leakage current | 50 | 45 | 20 |
|
||
|
Single-phase | 250 | 250 | 0.5 | Multipurpose | Lug Terminal | Small size | Tab | 50 | 45 | 20 |
|
|||
|
Single-phase | 250 | 250 | 0.5 | Multipurpose |
|
Small size | Tab | Low leakage current | 50 | 45 | 20 |
|
||
|
Single-phase | 250 | 250 | 0.5 | Multipurpose |
|
Small size | Wire | 32 | 68 | 23 |
|
|||
|
Single-phase | 250 | 250 | 0.5 | Multipurpose | Wire | Small size | Wire | 50 | 45 | 20 |
|
|||
|
Single-phase | 250 | 250 | 0.5 | Multipurpose |
|
Small size | Wire | Low leakage current | 50 | 45 | 20 |
|
