รายละเอียดสินค้า

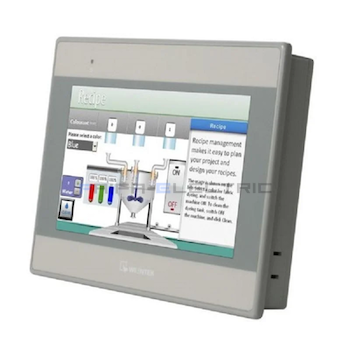

HMI 7” TFT LCD,800x480 Pixels,N/A ULข้อมูลสินค้า
|
Model
|
MT8051iE
|
MT8053iE
|
MT8070iE
|
MT8071iE
|
MT8102iE
|
|
|
Display
Touch Panel Memory
Processor I/O Port
RTC
Power
Specification
Environment
Certificate
Software
|
Display
|
4.3” TFT
|
4.3” TFT
|
7” TFT
|
10.1” TFT
|
|
|
Resolution
|
480 x 272
|
480 x 272
|
800 x 480
|
1024 x 600
|
||
|
Brightness (cd/ ㎡ )
|
400
|
400
|
400
|
350
|
||
|
Contrast Ratio
|
500: 1
|
500: 1
|
800: 1
|
500: 1
|
||
|
Backlight Type
|
LED
|
LED
|
LED
|
LED
|
||
|
Backlight Life Time
|
>30,000 hrs.
|
>30,000 hrs.
|
>30,000 hrs.
|
50,000 hrs.
|
||
|
Colors
|
16.7M
|
16.7M
|
16.7M
|
16.7M
|
||
|
LCD Viewing Angle
(T/B/L/R)
|
50/70/70/70
|
50/70/70/70
|
80/60/80/80
|
70/70/80/80
|
||
|
Pixel Pitch (mm)
|
0.198(H) x 0.198(V)
|
0.198(H) x 0.198(V)
|
0.1926(H) x 0.179(V)
|
0.2175(H) x 0.2088(V)
|
||
|
Type
|
4-wire Resistive Type
|
4-wire Resistive Type
|
4-wire Resistive Type
|
4-wire Resistive Type
|
||
|
Accuracy
|
Active Area Length(X)±2%, Width(Y)±2%
|
Active Area Length(X)±2%, Width(Y)±2%
|
Active Area Length(X)±2%, Width(Y)±2%
|
Active Area Length(X)±2%, Width(Y)±2%
|
||
|
Flash
|
128 MB
|
128 MB
|
128 MB
|
128 MB
|
||
|
RAM
|
128 MB
|
128 MB
|
128 MB
|
128 MB
|
||
|
32-bit RISC 600MHz
|
32-bit RISC 600MHz
|
32-bit RISC 600MHz
|
32-bit RISC 600MHz
|
|||
|
USB Host
|
USB 2.0 x 1
|
USB 2.0 x 1
|
USB 2.0 x 1
|
USB 2.0 x 1
|
||
|
Ethernet
|
10/100 Base-T x 1
|
LAN 1: 10/100/1000 Base-T x 1
LAN 2: 10/100 Base-T x 1
|
10/100 Base-T x 1
|
10/100 Base-T x 1
|
||
|
COM Port
|
COM1: RS-232/RS-485 2W/4W COM3: RS-485 2W
|
COM1: RS-232/RS-485 2W/4W COM3: RS-485 2W
|
COM1: RS-232/RS-485 2W/4W
COM3: RS-485 2W
|
COM1: RS-232
COM2: RS-485 2W/4W COM3: RS-485 2W
|
Con.A: COM1 RS-485 2W, COM2 RS-485 2W/4W, COM3 RS-485 2W/4W*1
Con.B: COM1 RS-232 / COM3 RS-232*2
|
|
|
RS-485 Dual Isolation
|
N/A
|
N/A
|
Yes
|
N/A
|
N/A
|
|
|
Built-in
|
Built-in
|
Built-in
|
Built-in
|
|||
|
Input Power
|
22~28VDC
|
22~28VDC
|
24±20%VDC
|
24±20%VDC
|
||
|
Power Isolation
|
Built-in
|
Built-in
|
N/A
|
Built-in
|
Built-in
|
|
|
Power Consumption
|
450mA@24VDC
|
450mA@24VDC
|
350mA@24VDC
|
450mA@24VDC
|
650mA@24VDC
|
|
|
Voltage Resistance
|
500VAC (1 min.)
|
500VAC (1 min.)
|
500VAC (1 min.)
|
500VAC (1 min.)
|
||
|
Isolation Resistance
|
Exceed 50MΩ @ 500VDC
|
Exceed 50MΩ @ 500VDC
|
Exceed 50MΩ @ 500VDC
|
Exceed 50MΩ @ 500VDC
|
||
|
PCB Coating
|
Yes
|
Yes
|
Yes
|
Yes
|
||
|
Enclosure
|
Plastic
|
Plastic
|
Plastic
|
Plastic
|
||
|
Dimensions WxHxD
|
128 x 102 x 32 mm
|
128 x 102 x 32 mm
|
200.3 x 146.3 x 34 mm
|
271 x 213 x 36.4 mm
|
||
|
Panel Cutout
|
119 x 93 mm
|
119 x 93 mm
|
192 x 138 mm
|
260 x 202 mm
|
||
|
Weight
|
Approx. 0.25 kg
|
Approx. 0.25 kg
|
Approx. 0.6 kg
|
Approx. 1 kg
|
||
|
Mount
|
Panel mount
|
Panel mount
|
Panel mount
|
Panel mount
|
||
|
Protection Structure
|
UL Type 4X (indoor use only) / NEMA4 /
IP65 Compliant Front Panel
|
UL Type 4X (indoor use only) / NEMA4 /
IP65 Compliant Front Panel
|
UL Type 4X (indoor use only) / NEMA4 /
IP65 Compliant Front Panel
|
UL Type 4X (indoor use only)*3/ NEMA4 /
IP65 Compliant Front Panel
|
||
|
Storage Temperature
|
-20° ~ 60° C (-4° ~ 140° F)
|
-20° ~ 60° C (-4° ~ 140° F)
|
-20° ~ 60° C (-4° ~ 140° F)
|
-20° ~ 60° C (-4° ~ 140° F)
|
||
|
Operating
Temperature
|
0° ~ 45° C (32° ~ 113° F)
|
0° ~ 45° C (32° ~ 113° F)
|
0° ~ 50° C (32° ~ 122° F)
|
0° ~ 50° C (32° ~ 122° F)
|
||
|
Relative Humidity
|
10% ~ 90% (non-condensing)
|
10% ~ 90% (non-condensing)
|
10% ~ 90% (non-condensing)
|
10% ~ 90% (non-condensing)
|
||
|
Vibration Endurance
|
10 to 25Hz
(X, Y, Z direction 2G 30 minutes)
|
10 to 25Hz
(X, Y, Z direction 2G 30 minutes)
|
10 to 25Hz
(X, Y, Z direction 2G 30 minutes)
|
10 to 25Hz
(X, Y, Z direction 2G 30 minutes)
|
||
|
CE
|
CE marked
|
CE marked
|
CE marked
|
CE marked
|
||
|
UL
|
cULus Listed
|
cULus Listed
|
cULus Listed
|
cULus Listed (UL 61010-2-201)*3
|
||
|
ATEX
|
N/A
|
N/A
|
N/A
|
ATEX Zone 2/22
Category 3 G/D
|
N/A
|
|
|
Weincloud
|
EasyAccess 2.0 (Optional)
|
EasyAccess 2.0 (Built-in)
|
EasyAccess 2.0 (Optional)
|
EasyAccess 2.0 (Optional)
|
EasyAccess 2.0 (Optional)
|
|
*1 MT8102iE: COM3 RS-485 4W will not be available when COM1 RS-485 2W is used.
*2 MT8102iE: Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
*3 MT8102iE: For customers who require UL, please order MT8102iEU. (MT8102iE is not UL listed.)
