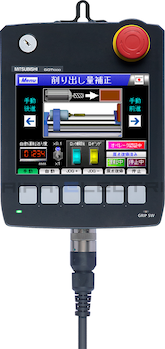

HMI - Handy GOT

(1/26/2017)



Handy GOT Base Units

Model Number		Screen Size (Resolution)	Display	Display Colors (Number of Colors)	Power Supply	Memory Size	Stocked Item
GT16 Handy	GT1665HS-VTBD	6.5" VGA 640 x 480 dots	TFT color LCD (high brightness, wide viewing angle)	65,536 colors	24VDC	15 MB	S
GT14 Handy	GT1455HS-QTBDE	5.7" QVGA  320 x 240 dots				9 MB	S
	GT1450HS-QMBDE		STN monochrome LCD	Monochrome (black/white) 16 gray scales		9 MB	S

Handy GOT Power Supply Specifications

Model Number		GT1455HS-QTBDE	GT1450HS-QMBDE	GT1665HS-VTBD
Input Power Supply Voltage		24VDC (+10% -15%), ripple voltage 200mV or less
Power Consumption	Power Consumption	8.4W (350mA/24V)	7.5W (350mA/24V)	11.6W (480mA/24V)
	With Backlight Off	7.0W (310mA/24V)		8.2W (340mA/24V)
Inrush Current		30A or less (26.4VDC) 2ms
Permissible Instantaneous Failure Time		Within 5ms
Noise Resistance		Noise voltage: 1000Vp-p, Noise width: 1μs (by noise simulator of 30 to 100Hz noise frequency)
Withstand Voltage		500VAC for 1 minute (across power supply terminals and earth)
Insulation Resistance		10MΩ or higher with an insulation resistance tester (across power supply terminals and earth)

Handy GOT Dimensions

Handy GOT Performance Specifications

Model Number		GT1455HS-QTBDE	GT1450HS-QMBDE	GT1665HS-VTBD
Display (*1)	Type	TFT color LCD	Monochrome (black/white) LCD	TFT color LCD
	Screen Size	5.7"		6.5"
	Resolution (Dots)	320 x 240		640 x 480
	Display Size (W x H) mm (in)	115 x 86 (4.53 x 3.39) (Horizontal format)		132.5 x 99.4 (5.22 x 3.91)
	Number of Display Characters	16-dot standard font: 20 characters 15 lines;  12-dot standard font: 26 characters 20 lines		16-dot standard font: 80 characters 30 lines; 12-dot standard font: 106 characters 40 lines
	Display Colors	65536 colors	Monochrome (black/white) 16 scales	65536 colors
	View Angle (*2)	Left/Right: 80°, Top: 80°, Bottom: 60°		Left/Right: 80°, Top: 60°, Bottom: 80°
	Intensity of LCD Only	400 [cd/m²]	230 [cd/m²]	550 [cd/m²]
	Intensity Adjustment	8-level adjustment
	Life	Approx. 50,000h (Time for contrast to become 1/5 at operating ambient temp. of 25°C)		Approx. 41,000h (Operating ambient temp: 25°C)
Backlight	Backlight	LED type (irreplaceable) Backlight off/screen saving time can be set. (*3)
Touch Panel	Type	Analog resistive film
	Key Size (Dots)	Minimum 2 x 2 dots (per key)
	No. of Simultaneous Touch Points	Simultaneous presses not allowed. (Only 1 point can be touched)
	Life	1 million times (operating force 0.98N max.)
Switch	Operation Switch	6 switches (6 contacts/common); N/O contact, Maximum rating 10mA/24VDC, Life: 1,000,000 times
	Grip Switch	1 switch (single wiring) (IDEC HE3B-M2PB). Enable switch (deadman switch) 3-position system of OFF ON OFF 2 N/O contacts Maximum rating 1A/24VDC (resistance load), Maximum rating 0.3A/24VDC (induction load), Life: 100,000 times
	Emergency Stop Switch	1 switch (single wiring) (IDEC XA1E-BV303R). 3 N/C contacts Maximum rating 1A/24VDC (resistance load),  Maximum rating 0.3A/24VDC (induction load), Life: 100,000 times
	Keylock Switch (2-Position)	1 switch (single wiring) (IDEC AS6M-2KT1PB). 2-notch type (Manual stop at each position/A key can be inserted and removed on only the left side. On the right side, a key cannot be removed. Two keys are provided.) 2-position, Maximum rating 1A/24VDC (resistance load), Maximum rating 0.3A/24VDC (induction load), Life: 100,000 times
	SD Card Access Switch	Prohibits accessing the SD card removing the card from the GOT. ON: SD card being accessed (SD card removal prohibited) OFF: SD card not accessed (SD card removal possible)		-
LED	Power LED	1 LED - Lit in green: Power is correctly supplied. Lit in orange: Screen saving and backlight not lit.  Blinks in orange/green: Blown back light bulb. Not lit: Power is not supplied.
	LED for Operation Switches	-		6 LEDs, green  (lighting control from the display section)
	LED for Grip Switch	1 LED, green (lighting control from display unit part)
Memory	C Drive	Flash memory (internal), 9 Mb (for storing project data and OS)		Flash memory (internal), 15 Mb  (for storing project data and OS)
		Life (Number of write times): 100,000 times
	D Drive	SRAM (internal), 512 kB (battery backup)		-
Battery	Battery	GT11-50BAT lithium battery		GT15-BAT lithium battery
	Backed Up Data	Clock data, alarm history, recipe data, time action setting value, advanced alarm, advanced recipe, logging, hard copy and SRAM user area		Clock data and maintenance time notification data, system log data
	Life	Approx. 5 years (Operating ambient temperature of 25°C)
Built-in Interface	RS-232, RS-422/485	RS-232, RS-422/485, 1ch each, Transmission speed: 115200/57600/38400/19200/9600/4800bps;  Application: For communicating with a controller. Terminating resistor: 330Ω (Fixed)
	Ethernet	Data transfer method: 100BASE-TX, 10BASE-T, 1ch; Connector shape: RJ-45 (modular jack); Application: For communicating with a  controller, using the gateway function, connecting a PC (project data upload/download, OS installation, FA transparent function)
	USB	USB (Full Speed 12Mbps) Host, 1ch; Connector shape: TYPE-A; Application: For transferring data, storing data
		USB (Full Speed 12Mbps) Device, 1ch; Connector shape: Mini-B;  Application: For connecting a PC (project data upload/download, OS installation, FA transparent function (*5))
	SD / CF Card	SD standard, 1ch; Supported memory card: SDHC memory card, SD memory card; Application: For uploading/downloading project data, OS installation, storing logging data		Compact flash slot 1ch; Connector shape: TYPE I; Application: Data transfer, data storage, GOT startup
Buzzer Output		Single tone (tone length adjustable)
Protective Construction (*4)		IP65f (valid when the external cable is connected, except for the connector conversion box side)
External Dimensions (W x H x D) mm		145 x 185 x 79.3		201 x 230 x 97
Weight (Not Including Cable) (kg)		0.79		1.2
Applicable Software Package		GT Works Version 3 1.71Z or later		GT Works3 Version 1.14Q or later

Notes:

1. On LCD screens, bright dots (permanently lit) and black dots (not to be lit) generally appear. Because the large number of display elements exist on an LCD screen, it is not possible to reduce appearance of the bright and black dots to zero. Note that the existence of bright and black dots is a standard characteristic of LCD screens, and it does not mean that the products are defective or damaged

2. Gradation inversion is a characteristic of liquid crystal displays. Please be forewarned that depending on the displayed color, the visualization may be difficult even within the described view angle.

3. The GOT screen saving/backlight off function prevents images from becoming permanently etched on the display screen and increases the backlight life.

4. Note that this does not guarantee all user’s operation environment. The protection is not applied when the interface environment protection cover is removed. In addition, the product may not be used in environments under exposition of oil or chemicals for a long period of time, or in environments filled with oil-mist.

5. The USB cable that connects the GOT and a personal computer is connected to the USB interface (device) in the interface environmental protection cover of the GOT. Since the Handy GOT is used with the interface environment protection cover opened, it is out of the warranty for protective structure (IP65F).

Handy GOT Dedicated Cables and Accessories

Product Name		Model Number	Cable Length	Application	Applicable Model		Stock Item
					GT16 Handy	GT14 Handy
External Connection Cable	FA Device, Power Supply and Operation Switch Connection Cable	GT16H-C30-42P	3m	For connecting GOT and Connector Conversion Box (GT16H-CNB-42S)	X	-	S
		GT16H-C60-42P	6m		X	-	S
		GT16H-C100-42P	10m		X	-	S
		GT14H-C30-42P	3m	For connecting GOT and Connector Conversion Box (GT16H-CNB-42S)	-	X	S
		GT14H-C60-42P	6m		-	X	S
		GT14H-C100-42P	10m		-	X	S
		GT16H-C30-32P	3m	For connection between CC-Link interface unit and Handy GOT	X	-	-
		GT16H-C50-32P	5m		X	-	-
		GT16H-C80-32P	8m		X	-	-
		GT16H-C130-32P	13m		X	-	-
		GT11H-C30-32P	3m	For connection between CC-Link interface unit and Handy GOT	-	X	-
		GT11H-C50-32P	5m		-	X	-
		GT11H-C80-32P	8m		-	X	-
		GT11H-C130-32P	13m		-	X	-
		GT11H-C30-37P	3m	External cable (for connecting GOT and Connector conversion box,  and for connecting GOT and Relay cable)  Connector Conversion Box: GT11H-CNB-37S or GT16H-CNB-37S	-	X	S
		GT11H-C60-37P	6m		-	X	S
		GT11H-C100-37P	10m		-	X	S
		GT11H-C30	3m	For connection between FA device, power supply and operation  switches and GOT	-	X	-
		GT11H-C60	6m		-	X	-
		GT11H-C100	10m		-	X	S
FA Device Connection Relay Cable	RS-422, Power Supply and Operation Switch Connection Cable	GT11H-C15R4-8P	1.5m	For connection between FXCPU and GOT For connection between power supply and operation switches and GOT	-	X	S
		GT11H-C15R4-25P	1.5m	For connection between A/QnACPU and GOT  For connection between power supply and operation switches and GOT	-	X	S
	RS-232, Power Supply and Operation Switch Connection Cable	GT11H-C15R2-6P	1.5m	For connection between QCPU and GOT For connection between power supply and operation switches and GOT	-	X	S
Connector Conversion Box for  Handy GOT		GT16H-CNB-42S	-	Box for converting 42-pin connectors into terminal blocks,  D-Sub 9pin connectors (*1), or Ethernet RJ-45 connectors	X	X	S
		GT16H-CNB-37S		Box for converting D-Sub 37pin connectors into terminal blocks or  Ethernet RJ-45 connectors	X	X	S
		GT11H-CNB-37S		Box for converting D-Sub 37pin connectors into terminal blocks or  D-Sub 9pin connectors	-	X	S
Protective Sheet		GT16H-60PSC	-	Protective sheet (clear, 5 sheets)	X	-	S
		GT11H-50PSC			-	X	S
Emergency Stop Switch Guard		GT16H-60ESCOV	-	For misoperation prevention of emergency stop switch	X	-	S
		GT14H-50ESCOV			-	X	S
