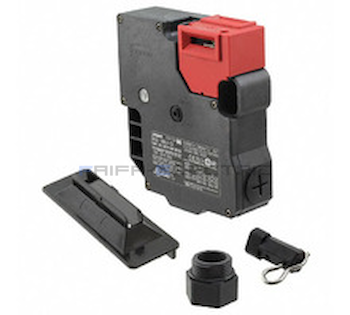

D4JL-4NFA-C6-NPT

SWITCH SAFETY 3PST 3A 240V

D4JL-4NFA-C6-NPT

Safety-door Switch
อัตราค่าจัดส่ง

รายละเอียดสินค้า

SWITCH SAFETY 3PST 3A 240V

ข้อมูลสินค้า

Switches (Operation Keys are sold separately.)

Consult with your OMRON representative when ordering any models that are not listed in this table.

Standard Models

Release
key type		 Indicator Lock and
release types		 Contact configuration
(door open/closed detection switch
and lock monitor switch contacts)		 Conduit
outlet		 Model
Special
release
key		 Green Mechanical lock
Solenoid release		 2NC/1NO + 2NC/1NO G1/2 D4JL-2NFA-C5
M20 D4JL-4NFA-C5
2NC/1NO + 3NC G1/2 D4JL-2PFA-C5
M20 D4JL-4PFA-C5
3NC + 2NC/1NO G1/2 D4JL-2QFA-C5
M20 D4JL-4QFA-C5
3NC + 3NC G1/2 D4JL-2RFA-C5
M20 D4JL-4RFA-C5
Solenoid lock
Mechanical
release		 2NC/1NO + 2NC/1NO G1/2 D4JL-2NFG-C5
M20 D4JL-4NFG-C5
2NC/1NO + 3NC G1/2 D4JL-2PFG-C5
M20 D4JL-4PFG-C5
3NC + 2NC/1NO G1/2 D4JL-2QFG-C5
M20 D4JL-4QFG-C5
3NC + 3NC G1/2 D4JL-2RFG-C5
M20 D4JL-4RFG-C5
Orange Mechanical lock
Solenoid release		 2NC/1NO + 2NC/1NO G1/2 D4JL-2NFA-D5
M20 D4JL-4NFA-D5
2NC/1NO + 3NC G1/2 D4JL-2PFA-D5
M20 D4JL-4PFA-D5
3NC + 2NC/1NO G1/2 D4JL-2QFA-D5
M20 D4JL-4QFA-D5
3NC + 3NC G1/2 D4JL-2RFA-D5
M20 D4JL-4RFA-D5
Solenoid lock
Mechanical
release		 2NC/1NO + 2NC/1NO G1/2 D4JL-2NFG-D5
M20 D4JL-4NFG-D5
2NC/1NO + 3NC G1/2 D4JL-2PFG-D5
M20 D4JL-4PFG-D5
3NC + 2NC/1NO G1/2 D4JL-2QFG-D5
M20 D4JL-4QFG-D5
3NC + 3NC G1/2 D4JL-2RFG-D5
M20 D4JL-4RFG-D5



Models with Rear Release Buttons



Release
key type		 Indicator Lock and
release types		 Contact configuration
(door open/closed detection switch
and lock monitor switch contacts)		 Conduit
outlet		 Model
Special
release
key		 Green Mechanical lock
Solenoid release		 2NC/1NO + 2NC/1NO G1/2 D4JL-2NFA-C6
M20 D4JL-4NFA-C6
2NC/1NO + 3NC G1/2 D4JL-2PFA-C6
M20 D4JL-4PFA-C6
3NC + 2NC/1NO G1/2 D4JL-2QFA-C6
M20 D4JL-4QFA-C6
3NC + 3NC G1/2 D4JL-2RFA-C6
M20 D4JL-4RFA-C6
Orange 2NC/1NO + 2NC/1NO G1/2 D4JL-2NFA-D6 *
M20 D4JL-4NFA-D6 *
2NC/1NO + 3NC G1/2 D4JL-2PFA-D6 *
M20 D4JL-4PFA-D6 *
3NC + 2NC/1NO G1/2 D4JL-2QFA-D6 *
M20 D4JL-4QFA-D6 *
3NC + 3NC G1/2 D4JL-2RFA-D6 *
M20 D4JL-4RFA-D6 *


* Models with Korean S-mark certification.

Models with Trapped Keys

Release
key type		 Indicator Lock and
release types		 Contact configuration
(door open/closed detection switch
and lock monitor switch contacts)		 Conduit
outlet		 Model
Trapped key
*1		 Green Mechanical lock
Solenoid release		 2NC/1NO + 2NC/1NO G1/2 D4JL-2NFA-C7-01
M20 D4JL-4NFA-C7-01
2NC/1NO + 3NC G1/2 D4JL-2PFA-C7-01
M20 D4JL-4PFA-C7-01
3NC + 2NC/1NO G1/2 D4JL-2QFA-C7-01
M20 D4JL-4QFA-C7-01
3NC + 3NC G1/2 D4JL-2RFA-C7-01
M20 D4JL-4RFA-C7-01
Orange 2NC/1NO + 2NC/1NO G1/2 D4JL-2NFA-D7-01 *2
M20 D4JL-4NFA-D7-01 *2
2NC/1NO + 3NC G1/2 D4JL-2PFA-D7-01 *2
M20 D4JL-4PFA-D7-01 *2
3NC + 2NC/1NO G1/2 D4JL-2QFA-D7-01 *2
M20 D4JL-4QFA-D7-01 *2
3NC + 3NC G1/2 D4JL-2RFA-D7-01 *2
M20 D4JL-4RFA-D7-01 *2



*1. Thirty types of trapped keys can be manufactured. Specify the trapped key type in numerical order starting from 01
       when ordering.
*2. Models with Korean S-mark certification.

Trapped Key + Rear Release Button type

Release
key type		 Indicator Lock and
release types		 Contact configuration
(door open/closed detection switch
and lock monitor switch contacts)		 Conduit
outlet		 Model
Trapped key Green Mechanical lock
Solenoid release		 2NC/1NO + 2NC/1NO G1/2 D4JL-2NFA-C8-01-SJ *
M20 D4JL-4NFA-C8-01-SJ *
2NC/1NO + 3NC G1/2 D4JL-2PFA-C8-01-SJ *
M20 D4JL-4PFA-C8-01-SJ *
3NC + 2NC/1NO G1/2 D4JL-2QFA-C8-01-SJ *
M20 D4JL-4QFA-C8-01-SJ *
3NC + 3NC G1/2 D4JL-2RFA-C8-01-SJ *
M20 D4JL-4RFA-C8-01-SJ *
Orange 2NC/1NO + 2NC/1NO G1/2 D4JL-2NFA-D8-01-SJ *
M20 D4JL-4NFA-D8-01-SJ *
2NC/1NO + 3NC G1/2 D4JL-2PFA-D8-01-SJ *
M20 D4JL-4PFA-D8-01-SJ *
3NC + 2NC/1NO G1/2 D4JL-2QFA-D8-01-SJ *
M20 D4JL-4QFA-D8-01-SJ *
3NC + 3NC G1/2 D4JL-2RFA-D8-01-SJ *
M20 D4JL-4RFA-D8-01-SJ *



* Models with Korean S-mark certification.

Release key position Front Front and rear release button
Release key type Special release key Special release key
Switch appearance
1611_lu_4_1
 Front
1611_lu_4_2
 Rear
1611_lu_4_3



Release key position Front Front and rear release button
Release key type Trapped key Special release key
Switch appearance
1611_lu_4_4
 Front
1611_lu_4_5
 Rear
1611_lu_4_6

Operation Keys

Type Model
Horizontal mounting 1611_lu_5_1 D4JL-K1
Vertical mounting 1611_lu_5_2 D4JL-K2
Adjustable mounting (horizontal) 1611_lu_5_3 D4JL-K3
Adjustable mounting (horizontal),
Copper-free *3		 1611_lu_5_4 D4JL-K4



*3. There is no copper exposed on the exterior.

Slide Keys

Appearance Specifications Contents Model Applicable Door
Switch
1611_lu_7_1 Weight: 3,400 g
Mechanical durability:
20,000 operations min.		 Slide Key: 1
(Disable-prevention cover
and Operation Key
D4JL-K2 are already
mounted on Slide Key)
D4JL mounting tool: 1
Inner lever: 1
Inner lever mounting
screws: 2
Door Switch mounting
one-way screws: 3
Switch protective cover: 1
Switch protective cover
screws: 4		 D4JL-SK40 D4JL-[][]F[]-[]6
D4JL-[][]FA-[]8-01-SJ
rear release button type

Note: 1. The Door Switch is not included. Select the Door Switch depending on the necessary number of contacts and the
              conduit outlet.
          2. Perform risk assessment for the equipment in question, configure relay units and other safety circuits, and use
               properly.
          3. D4JL-SK30 was discontinued at the end of September 2007.
