EB3C-R10AN

RELAY BARRIER

EB3C-R10AN

Relay Barrier
อัตราค่าจัดส่ง

รายละเอียดสินค้า

Key Features

  • Zone 0 /Class 1 Division 1 locations
  • IEC60079 compliant
  • Dry-contact switches with 0.5Ω maximum contact resistance can be connected to the EB3C
  • 8- and 16-circuit types are available in common wiring types
  • ideal for connection to PLCs
  • Universal AC power voltage (100 to 240V AC)
  • No grounding required
  • IDEC’s original spring-up terminals minimizes wiring time
  • Installation: 35-mm-wide DIN rail mounting or direct panel mounting
  • Global usage USA: FM Canada: CSA Europe: CE marking


    • Product Type 10-Input with relay output, 100 to 240VAC
    Output Type Relay
    Channels 10
    Operating Voltage 100-240V AC
    Common Signal Isolated


    ข้อมูลสินค้า

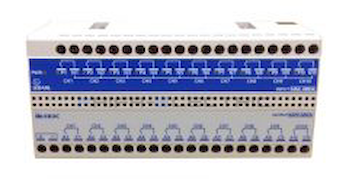

    EB3C Relay Barrier

    Intrinsically Safe Relay Barriers are essential components of intrinsically safe applications. These devices limit current, voltage, & total energy delivered to a sensor or any other actuator instrument located in a hazardous area. When used in areas with hazardous chemicals, gases or other ignitable atmospheres, limiting the energy is required to prevent any possible fires & explosions from occurring. Dry contact switches can be connected to the EB3C. Illuminated switches also can be connected with the combination of the EB3S Relay and the EB3L Lamp Barriers.

    		 EB3C Relay Barrier


    Key Features:

    • Zone 0 /Class I Division 1 locations
    • IEC60079 compliant
    • Dry-contact switches with 0.5Ω maximum contact resistance can be connected to the EB3C
    • 8- and 16-circuit types are available in common wiring types
    • Ideal for connection to PLCs
    • Universal AC power voltage (100 to 240V AC)
    • No grounding required
    • IDEC’s original spring-up terminals minimizes wiring time
    • Installation: 35-mm-wide DIN rail mounting or direct panel mounting
    • Global usage USA: FM Canada: CSA Europe: CE marking, ATEX

    Part Number
    Description
    Key Features
