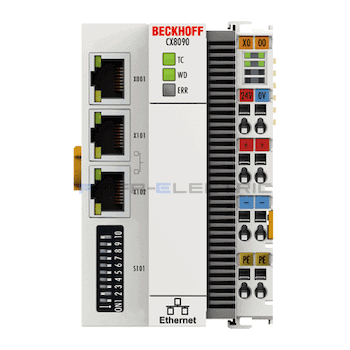

CX8090 CX8090 | Embedded PC with Arm9™ and 2-port Ethernet switch

คุณไม่มีสินค้าในตะกร้า โปรดเลือกหยิบสินค้าที่ต้องการซื้อลงตะกร้า

CX8090 | Embedded PC with Arm9™ and 2-port Ethernet switch

CX8090

แบรนด์ :

สอบถามสินค้า

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Technical data	CX8090
Processor	Arm9™, 400 MHz
Number of cores	1
Flash memory	slot for microSD card, 512 MB included (optionally expandable)
Main memory	64 MB DDR2 RAM (not expandable)
1-second UPS	integrated (1 MB on microSD card)
Programming languages	IEC 61131-3
Web visualization	yes
Online change	yes
Up/down load code	yes/yes
Interfaces	1 x RJ45 10/100 Mbit/s, 1 x USB device (behind the front flap), 1 x bus interface
Cooling	passive
Bus interface	2 x RJ45 (switched)
Diagnostics LED	1 x TC status, 1 x WD, 1 x error
Clock	internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
Operating system	Windows Embedded CE 6
Control software	TwinCAT 2 PLC
I/O connection	E-bus or K-bus, automatic recognition
Power supply	24 V DC (-15%/+20%)
Current supply E-bus/K-bus	2 A
Web-based management	yes
Max. power consumption	3 W
Max. power consumption E-bus/K-bus	10 W (5 V/max. 2 A)
Dimensions (W x H x D)	64 mm x 100 mm x 73 mm
Weight	approx. 180 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20
Approvals/markings	CE, UL, ATEX, IECEx, cFMus
Ex marking	ATEX: II 3 G Ex nA IIC T4 Gc II 3 D Ex tc IIIC T135 °C Dc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc

Technical data

CX8090

Processor

Arm9™, 400 MHz

Number of cores

Flash memory

slot for microSD card, 512 MB included (optionally expandable)

Main memory

64 MB DDR2 RAM (not expandable)

1-second UPS

integrated (1 MB on microSD card)

Programming languages

IEC 61131-3

Web visualization

yes

Online change

yes

Up/down load code

yes/yes

Interfaces

1 x RJ45 10/100 Mbit/s, 1 x USB device (behind the front flap), 1 x bus interface

Cooling

passive

Bus interface

2 x RJ45 (switched)

Diagnostics LED

1 x TC status, 1 x WD, 1 x error

Clock

internal battery-backed clock for time and date (battery behind the front flap, exchangeable)

Operating system

Windows Embedded CE 6

Control software

TwinCAT 2 PLC

I/O connection

E-bus or K-bus, automatic recognition

Power supply

24 V DC (-15%/+20%)

Current supply E-bus/K-bus

2 A

Web-based management

yes

Max. power consumption

3 W

Max. power consumption E-bus/K-bus

10 W (5 V/max. 2 A)

Dimensions (W x H x D)

64 mm x 100 mm x 73 mm

Weight

approx. 180 g

Operating temperature

0…55°C

Storage temperature

-25…+85°C

Relative humidity

95%, no condensation

Vibration/shock resistance

conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission

conforms to EN 61000-6-2/EN 61000-6-4

Protection rating

IP20

Approvals/markings

CE, UL, ATEX, IECEx, cFMus

Ex marking

ATEX:
II 3 G Ex nA IIC T4 Gc
II 3 D Ex tc IIIC T135 °C Dc
IECEx:
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc
