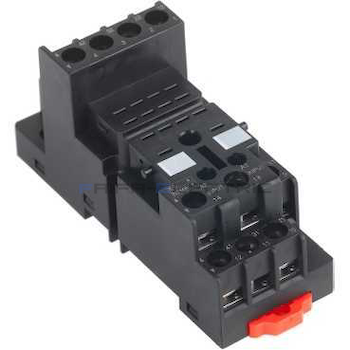

รายละเอียดสินค้า
| Range of product | Harmony Electromechanical Relays Harmony Timer Relays |
|---|---|
| Device short name | RXZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact |
| Contacts type and composition | 4 C/O |
| [Ith] conventional free air thermal current | 10 A |
| Shape of pin | Flat |
|---|---|
| [Ue] rated operational voltage | < 250 V conforming to IEC < 300 V conforming to UL |
| Contact terminal arrangement | Mixed |
| Connections - terminals | Screw clamp terminals, 1 x 0.25...1 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw clamp terminals, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 30 mm |
| Net weight | 0.048 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | UL CSA Lloyd's |
| Marking | CE |
| ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.896 cm |
| Package 1 Width | 3.005 cm |
| Package 1 Length | 8.218 cm |
| Package 1 Weight | 52.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.4 cm |
| Package 2 Width | 8.8 cm |
| Package 2 Length | 15.0 cm |
| Package 2 Weight | 0.621 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 11.851 kg |
