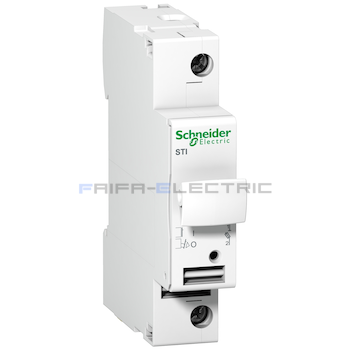

A9N15636 - Schneider Electric Acti9 - fuse-disconnector STI - 1 pole - for fuse 10.3 x 38 mm
A9N15635
อัตราค่าจัดส่ง
รายละเอียดสินค้า
| range |
Acti 9
|
|---|---|
| product name |
Acti 9 STI
|
| product or component type |
Fuse-Disconnector
|
| device short name |
STI
|
| poles description |
1P
|
| [In] rated current |
2 A
4 A 6 A 10 A |
|---|---|
| fuse curve |
AM
GG |
| fuse size |
8.5 X 31.5 Mm
|
| [Ue] rated operational voltage |
400 V AC
|
| [Ui] rated insulation voltage |
500 V AC 50/60 Hz
|
| mounting mode |
Clip-On
|
| mounting support |
DIN Rail
|
| 9 mm pitches |
2
|
| height |
81 Mm
|
| width |
18 Mm
|
| depth |
75 Mm
|
| colour |
White
|
| connections - terminals |
Screw Clamp Terminals1 Cable(S) 0.75…10 Mm² Rigid
Screw Clamp Terminals1 Cable(S) 0.5…6 Mm² Flexible Screw Clamp Terminals2 Cable(S) 0.75…4 Mm² Rigid Screw Clamp Terminals2 Cable(S) 0.5…6 Mm² Flexible |
| wire stripping length |
12 Mm
|
| tightening torque |
2 N.M
|
| standards |
IEC EN 60947-3
IEC 60269-1/2 |
|---|---|
| IP degree of protection |
IP20
|
| pollution degree |
3
|
| ambient air temperature for operation |
-20…60 °C
|
| ambient air temperature for storage |
-40…80 °C
|
