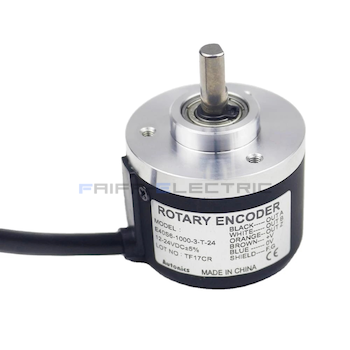

E40S6-1000-3-T-24

Rotary Encoder, Incremental, 40mm, 6mm Shaft, 1000 PPR, A,B,Z, Totem pole output, 12-24VDC

E40S6-1000-3-T-24

อัตราค่าจัดส่ง

รายละเอียดสินค้า

Shaft outer diameter Ø6mm
Max. response frequency 300kHz
Max. allowable revolution 5000rpm
Starting torque Max. 40gf.cm(max. 0.00392N.m)
Resolution 1000P/R
Output phase A, B, Z
Control output Totem pole
Power supply 12-24VDC  ±5%(ripple P-P: max. 5%)
Connection type Radial cable type
Protection structure IP50
Approval
Environment_Ambient temperature -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Accessories Ø6mm coupling standard, Ø8mm coupling(sold separately)
Weight Approx. 120g
