PLC, 100-240 VAC supply, 8 x 24 VDC inputs, 6 x relay outputs 2 A, 2K steps program + 2K words data memory, no expandability
CP1E-E14SDR-A
อัตราค่าจัดส่ง
รายละเอียดสินค้า

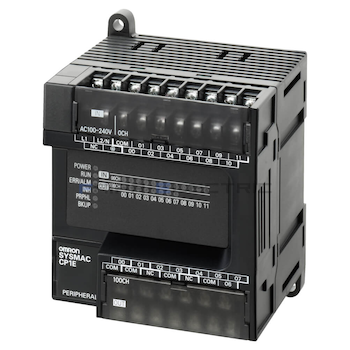

Integrated Programmable Logic Controller (PLC) unit with I/Os - OMRON (SYSMAC CP1E series - Renewal-type) - 14I/O [8DI (8 x digital inputs (24Vdc; including 6 high-speed 10kHz counters)) + 6DO (6 x digital outputs (NO contact type))] - 2Ksteps (Program) + 2Kwords (Data) memory capacity - 100Vac-240Vac supply voltage - with USB port - DIN rail mounting
CP1W0161R
| Supply voltage type | AC |
| Number of digital inputs | 8 |
| Input type | PNP/NPN |
| Number of digital outputs | 6 |
| Output type | Relay |
| Program capacity | 2 K steps |
| Data memory capacity | 2 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | None |
| Max. encoder input frequency | 10 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 0 |
| Max. number of local I/O points | 14 |
| Max. number of expansion units | 0 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Width | 86 mm |
| Depth | 79 mm |
| Product Weight (unpacked) | 360 g |
