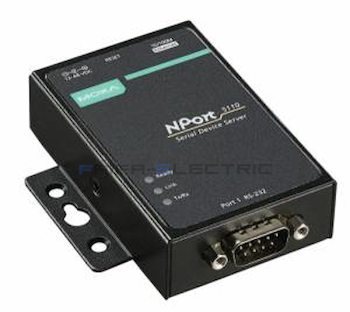

NPort 5110
NPort 5110

1-port device server, 10/100M ethernet, RS-232 DB9 male, 12~48 VDC, 0~55°C

NPort 5110

อัตราค่าจัดส่ง

รายละเอียดสินค้า

Features and Benefits

  • Small size for easy installation
  • Real COM/TTY drivers for Windows and Linux
  • Standard TCP/IP interface and versatile operation modes
  • Easy-to-use Windows utility for configuring multiple device servers
  • SNMP MIB-II for network management
  • Configure by Telnet, web browser, or Windows utility
  • Adjustable pull high/low resistor for RS-485 ports
• Ethernet Interface
Number of Ports 1
Speed 10/100 Mbps, auto MDI/MDIX
Connector 8-pin RJ45
Magnetic Isolation Protection 1.5 kV built-in
• Serial Interface
Number of Ports 1
Serial Standards NPort 5110: RS-232
NPort 5130: RS-422/485
NPort 5150: RS-232/422/485
Connector DB9 male
RS-485 Data Direction Control ADDC® (Automatic Data Direction Control)
Pull High/Low Resistor for RS-485 1 kΩ, 150 kΩ
• Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baudrate Supports standard baudrates (unit=bps)
NPort 5110: 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k
NPort 5130/5150: 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
• Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
• Software
Network Protocols ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, ARP, HTTP, SMTP
Configuration Options Web Console, Serial Console (NPort 5110/5150 only), Telnet Console, Windows Utility
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x, 4.x
Android API Android 3.1.x and later
• Physical Characteristics
Housing Metal
Weight 340 g (0.75 lb)
Dimensions Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
• Environmental Limits
Operating Temperature Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Power Requirements
Input Voltage 12 to 48 VDC
Input Current NPort 5110: 128.7 mA @ 12 VDC
NPort 5130/5150: 200 mA @ 12 VDC
• Standards and Certifications
Safety UL 60950-1
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4
• Reliability
Automatic Reboot Trigger Built-in WDT (watchdog timer)
• MTBF (mean time between failures)
Time NPort 5110: 3,126,448 hrs
NPort 5130: 2,836,863 hrs
NPort 5150: 2,736,202 hrs
Standard Telcordia (Bellcore) Standard TR/SR
  •

ข้อมูลสินค้า


moxa-nport-5110-image.jpg | MoxaNPort 5110
moxa-nport-5110-t-image.jpg | MoxaNPort 5110-T
moxa-nport-5130-image.jpg | MoxaNPort 5130
moxa-nport-5150-image.jpg | MoxaNPort 5150
Operating Temp. 0 to 55°C -40 to 75°C 0 to 55°C 0 to 55°C
Baudrate 110 bps to 230.4 kbps 110 bps to 230.4 kbps 50 bps to 921.6 kbps 50 bps to 921.6 kbps
Serial Standards RS-232 RS-232 RS-422/485 RS-232/422/485
Input Current 128.7 mA @ 12 VDC 128.7 mA @ 12 VDC 200 mA @ 12 VDC 200 mA @ 12 VDC
Input Voltage 12-48 VDC 12-48 VDC 12-48 VDC 12-48 VDC
