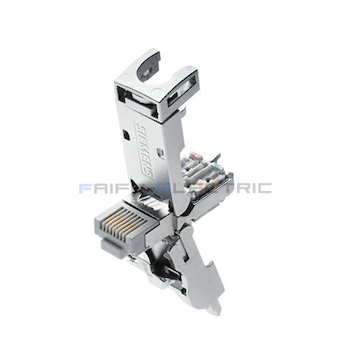

6GK1901-1BB12-2AA0 SIEMENS Industrial Ethernet FastConnect RJ45
6GK1901-1BB12-2AA0
อัตราค่าจัดส่ง
รายละเอียดสินค้า
| Product description | RJ45 data connector | |
| Industrial Ethernet FastConnect RJ45 plug 180 4x 2, RJ45 plug-in connector; CAT6A; (10/100/1000/10000 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC Cable 4x 2 (AWG24); 180° cable outlet 1 pack = 1 unit | ||
| Suitability for use | For connection to IE FC TP cables 4x2, suitable for fast assembly with the FastConnect system | |
| Transmission rate | ||
| Transfer rate / for Industrial Ethernet | 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10000 Mbit/s | |
| Interfaces | ||
| Number of electrical connections | ||
| ● for Industrial Ethernet FC TP cables | 8 | |
| ● for network components or terminal equipment | 1 | |
| Type of electrical connection | ||
| ● for Industrial Ethernet FC TP cables | integrated cut-and-clamp contacts for 8-wire TP FC installation cable | |
| ● for network components or terminal equipment | RJ45 connector | |
| Type of electrical connection / FastConnect | Yes | |
| Mechanical data | ||
| Material / of the enclosure | metal | |
| Number of reuses | 10 | |
| Locking mechanism design | other | |
| Design, dimensions and weight | ||
| Type of cable outlet | 180° cable outlet | |
| Width | 13.7 mm | |
| Height | 16 mm | |
| Depth | 55 mm | |
| Net weight | 35 g | |
| Connectable cable cross-section | 8 ... 8 mm | |
| Permitted ambient conditions | ||
| Ambient temperature | ||
| ● during operation | -40 ... +85 °C | |
| ● during storage | -40 ... +85 °C | |
| ● during transport | -40 ... +85 °C | |
| Relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % | |
| Protection class IP | IP20 | |
| Product properties, functions, components / general | ||
| Product feature | ||
| ● PoE capability | Yes | |
| ● PoE+capability | Yes | |
| ● silicon-free | Yes | |
| Product component | ||
| ● strain relief | Yes | |
| Standards, specifications, approvals | ||
| Certificate of suitability | ||
| ● RoHS conformity | Yes | |
| ● UL approval | Yes | |
| ● cULus approval | Yes | |
| ● Railway application in accordance with EN 50155 | No | |
| Standard for structured cabling | Cat6A | |
ข้อมูลสินค้า
