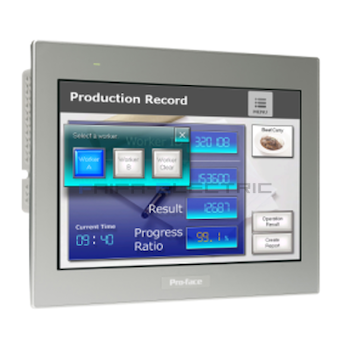

12"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC, GP-ProEX model Pro-face by Schneider Electric - ST6000 Series Touch Screen HMI

PFXST6600WADE

แบรนด์ : Pro-face สินค้า HMI ซีรีย์ : ST6000

฿ 46500.00

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

ST-6600WA (GP-Pro EX) / 12" wide screen 1280x1080pixels (WXGA) 16M colors Silver overlay

Standard product information

Family	HMI
Series	ST6000 Series
Size	12" Wide
Model	PFXST6600WADE
Global Code	PFXST6600WADE
Product Features	12" DC Analog
Repair Status	✔ (Maintenance service is available, able to be maintained.)

Display Specifications

Display type	TFT Color LCD
Display size	12.1" Wide
Resolution	1,280 x 800 pixels (WXGA)
Effective display area	W261.12 x H163.2 mm [W10.28 x H6.43 in.]
Display colors	16 million colors
Backlight	White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life	50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 25%)
Brightness control	16 Levels (Adjusted with touch panel or software)
Touch panel type	Resistive Film (analog, single-touch)
Touch panel resolution	1,024 x 1,024
Touch panel lifetime	1,000,000 times or more

Electrical Specifications

Rated Input Voltage	N/A 24 Vdc
Input Voltage Limits	N/A 19.2 to 28.8 V
Voltage Drop	N/A 5 ms or less
Max Power Consumption	N/A 9 W
Power Consumption When power is not supplied to devices via front USB	N/A 5.5 W or less
Power Consumption When screen turns off the backlight (Standby Mode)	N/A 3.6 W or less
In-Rush Current	N/A 30 A or less
Voltage Endurance	N/A 1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
Insulation Resistance	N/A 500 Vdc, 10 MO or more

Environmental Specifications

Minimal Surrounding Air Temperature	N/A 0 ºC32 ºF
Maximal Surrounding Air Temperature	N/A 50 ºC122 ºF
Storage Temperature	N/A -20 to 60 ºC-4 to 140 ºF
Dust	N/A 0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution Degree	N/A For use in Pollution Degree 2 environment
Corrosive Gases	N/A Free of corrosive gases
Air Pressure (altitude range)	N/A 800 to 1,114 hPa(2,000 m [6,561 ft.] above sea level or less)
Vibration Resistance	N/A IEC/EN 61131-2 compliant 5 to 9 Hz single amplitude 3.5 mm [0.14 in.] 9 to 150 Hz fixed acceleration: 9.8 m/s2 X, Y, Z directions for 10 cycles (approx. 100 min.)
Shock Resistance	N/A IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrical fast transient/burst	N/A IEC 61000-4-4 2 kV: Power port (display unit) 1 kV: Signal ports
Electrostatic Discharge Immunity	N/A Contact Discharge Method: 6 kV Air Discharge Method: 8 kV (IEC/EN61000-4-2 Level 3)

Interface Specification

Serial (COM1)	N/A Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
Serial (COM1)	N/A Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
USB(Type A)	N/A Conforms to USB 2.0 (Type A) x 1 Power supply voltage: 5 Vdc ±5 % Output Current: 500 mA/port 1 A total for 3 ports Communication distance: 5 m [16.4 ft.]
USB (mini B)	N/A Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less
Ethernet	N/A IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 2

Structural Specifications

Grounding	N/A Functional grounding: Grounding resistance of 100 O, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).
Cooling method	N/A Natural Air Circulation
Structure	N/A IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure)
External Length	N/A 12.32 in313 mm
External Depth	N/A 1.97 in50 mm
External Height	N/A 9.25 in235 mm
Panel Cut Length	N/A 11.61 in295 mm
Panel Cut Height	N/A 8.54 in217 mm
Panel Thickness Area	N/A 0.06 to 0.2 in1.6 to 5 mm
Weight	N/A 1.8 kg3.97 lb

Accessories

Accessories

N/A CA5-DCCNM-01, DC Power Supply Connector (QUOTE)
EX-ED-V40, GP-Pro EX HMI Development Software (QUOTE)
PFXZCDDS122, 12-inch Screen Protection Sheet (QUOTE)
PFXZCIAFTF1, Installation Fastener (QUOTE)

ข้อมูลสินค้า

ST6000 Series Lineup / Specifications

Wide Model

Product Name	Display Size	Model No	Color	Touch Panel	Interface	Details
ST-6700WA	15" Wide (FWXGA)	PFXST6700WAD	16 million colors	Resistive film (analog)	COM1: RS-232C COM2: RS-422/485 Ethernet x 2 USB Type A x 1 USB micro-B x 1	Specifications
ST-6700WA	15" Wide (FWXGA)	PFXST6700WADE				Specifications
ST-6600WA	12" Wide (WXGA)	PFXST6600WAD				Specifications
ST-6600WA	12" Wide (WXGA)	PFXST6600WADE				Specifications
ST-6500WA	10" Wide (WSVGA)	PFXST6500WAD				Specifications
ST-6500WA	10" Wide (WSVGA)	PFXST6500WADE				Specifications
ST-6400WA	7" Wide (WVGA)	PFXST6400WAD				Specifications
ST-6400WA	7" Wide (WVGA)	PFXST6400WADE				Specifications
ST-6200WA	4" Wide (WQVGA)	PFXST6200WAD			COM1: RS-232C/422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1	Specifications
ST-6200WA	4" Wide (WQVGA)	PFXST6200WADE				Specifications

4:3 Model

Product Name	Display Size	Software	Model No	Color	Touch Panel	Interface	Details
ST-6500T	10.4" (SVGA)		PFXST6500TADE	16 million colors	Resistive film (analog)	COM1: RS-232C COM2: RS-422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 SD Card I/F	Specifications
ST-6300T	5.7" (VGA)		PFXST6300TADE	262,144 colors	Resistive film (analog)	COM1: RS-232C COM2: RS-422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1	Specifications
