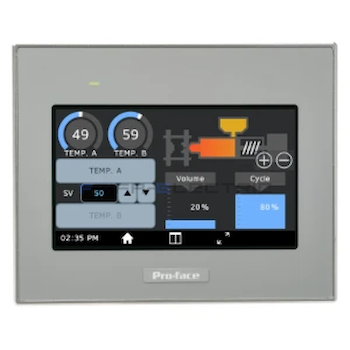

PFXST6200WADE (GP-Pro EX) : จอทัชสกรีน HMI 4.3" RS-232C/422/485, USB 2.0, 24VCD - Proface - Touch Screen
PFXST6200WADE
อัตราค่าจัดส่ง
รายละเอียดสินค้า
| Display Type |
TFT Color LCD
|
|---|---|
| Display Size |
(4.3-inch) Wide
|
| Resolution |
WQVGA TFT (480 x 272 Pixels)
|
| Effective Display Area |
95.04 x 53.86 mm (3.74 x 2.12 in)
|
| Display Colors |
16 million colors
|
| Backlight |
Backlight White LED (Not user replaceable. When replacement is required, contact customer support.)
|
| Brightness Control |
16 levels (Adjusted with touch panel or software)
|
| Application Memory |
PFXST6200WAD
When using BLUE:FLASH EPROM 128MB Removable System: No PFXST6200WADE When using GP-Pro EX: - Media: FLASH EPROM - Screen Area: 64MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used. - User Font Area: 8MB - Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB. - Free Space: None Removable System: No |
| Touch Panel Resolution |
1024 x 1024
|
| Ethernet (LAN) |
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASETX, Connector: Modular jack (RJ-45) x 1
|
| USB (TYPE-A) |
Connector: USB 2.0 (Type A) x 1, Power supply voltage: 5 Vdc ±5 %, Maximum current supplied: 500 mA, Communication distance: 5 m [16.4 ft.]
|
ข้อมูลสินค้า
ST6000 Series Lineup / Specifications
Wide Model
| Product Name | Display Size | Software | Model No | Color | Touch Panel | Interface | Details |
|---|---|---|---|---|---|---|---|
 ST-6700WA |
15" Wide (FWXGA) |
 |
PFXST6700WAD |
16 million colors |
Resistive film (analog) |
COM1: RS-232C COM2: RS-422/485 Ethernet x 2 USB Type A x 1 USB micro-B x 1 |
Specifications |
 |
PFXST6700WADE |
Specifications | |||||
 ST-6600WA |
12" Wide (WXGA) |
|
PFXST6600WAD | Specifications | |||
|
PFXST6600WADE | Specifications | |||||
 ST-6500WA |
10" Wide (WSVGA) |
|
PFXST6500WAD | Specifications | |||
|
PFXST6500WADE | Specifications | |||||
 ST-6400WA |
7" Wide (WVGA) |
|
PFXST6400WAD | Specifications | |||
|
PFXST6400WADE | Specifications | |||||
 ST-6200WA |
4" Wide (WQVGA) |
|
PFXST6200WAD | COM1: RS-232C/422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 |
Specifications | ||
|
PFXST6200WADE | Specifications |
4:3 Model
| Product Name | Display Size | Software | Model No | Color | Touch Panel | Interface | Details |
|---|---|---|---|---|---|---|---|
 ST-6500T |
10.4" (SVGA) | |
PFXST6500TADE | 16 million colors |
Resistive film (analog) |
COM1: RS-232C COM2: RS-422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 SD Card I/F |
Specifications |
 ST-6300T |
5.7" (VGA) | PFXST6300TADE | 262,144 colors | COM1: RS-232C COM2: RS-422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 |
Specifications |
