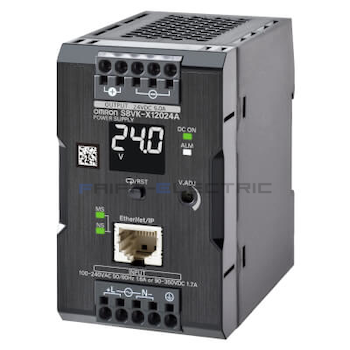

S8VK-X12024A-EIP

Case model, Coationg, Input: 100 to 240 VAC, Power rating 120 W, Output: 24 VDC, Terminal blocks (Push-In Plus Terminal Block), Communications: Yes (EtherNet/IP, Modbus TCP), Total run time monitor output, Parallel operation, Harmonic current emissions

S8VK-X12024A-EIP

Switching Power Supply
อัตราค่าจัดส่ง

รายละเอียดสินค้า

Specifications

Type Book type
Mounting method DIN rail
Phase Single
Power output 120 W
Efficiency 92 %
Output voltage 24 V
Rated output current 5 A
Power boost ratio 120 %
Temperature range -40-70 °C
Terminal Push-in
Alarm function -
Number of output branches 1
Rated supply voltage at AC 50 Hz 100-240 V
Allowable supply voltage AC 85-264 V
Allowable supply voltage DC 90-350 V
Width 55 mm
Height 94.7 mm
Depth 92.3 mm
