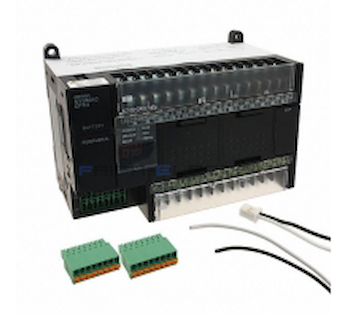

รายละเอียดสินค้า
• Pulse output for 4 axes. Advanced power for high-precision positioning control.
• High-speed counters. Differential phases for 4 axes. Easily handles multi-axis control with a single unit.
• Eight interrupt inputs are built in. Faster processing of approximately 500 instructions speeds up the entire system.
• Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
• Ethernet Communications. Enabled by using an Option Board. Two ports can be used as an Ethernet port to perform. Ethernet communications between the CP1H and a host computer.
• Built-in Analog I/O. XA CPU Units provide 4 input words and 2 output words.
• USB Peripheral Port. Another standard feature.
• The structured text (ST) language. Makes math operations even easier.
• Can be used for the CP1W series and CJ series Unit. The extendibility of it is preeminently good.
• LCD displays and settings. Enabled using Option Board.
Specifications
| Supply voltage type | AC |
| Number of digital inputs | 24 |
| Input type | PNP/NPN |
| Number of digital outputs | 16 |
| Output type | Relay |
| Program capacity | 20 K steps |
| Data memory capacity | 32 K words |
| Logic execution time | 0.10 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | CAN, CompoBus/S Master, CompoBus/S Slave, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of analog inputs | 4 |
| Number of analog outputs | 2 |
| Number of encoder input channels | 4 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analogue option boards | |
| Max. number of analogue I/O channels | 62 |
| Max. number of local I/O points | 320 |
| Max. number of expansion units | 7 |
| Built-in auxiliary 24 VDC output | 300 mA |
| Operating temperature range | 0-55 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 150 mm |
| Product Depth (unpacked) | 85 mm |
| Product Weight (unpacked) | 750 g |
ข้อมูลสินค้า
| Product | Description |
| PLC, 100-240 VAC supply, 24 x 24 VDC inputs, 16 x relay outputs 2 A, 1 x analog input, 20K steps program + 32K words data memory | |
| PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x NPN outputs 0.3 A, 1 x analog input, 20K steps program + 32K words data memory | |
| PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x PNP outputs 0.3 A, 1 x analog input, 20K steps program + 32K words data memory | |
| PLC, 100-240 VAC supply, 24 x 24 VDC inputs, 16 x relay outputs 2 A, 4 x analog inputs, 2 x analog outputs, 20K steps program + 32K words data memory | |
| PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x NPN outputs 0.3 A, 4 x analog inputs, 2 x analog outputs, 20K steps program + 32K words data memory | |
| PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x PNP outputs 0.3 A, 4 x analog inputs, 2 x analog outputs, 20K steps program + 32K words data memory |
