รายละเอียดสินค้า
Functional Specifications
|
Display Type
|
TFT Color LCD
|
|---|---|
|
Display Size
|
7" Wide
|
|
Resolution
|
800 x 480 pixels (WVGA)
|
|
Effective Display Area
|
W154.08 x H85.92 mm [W6.066 x H3.382 in.]
|
|
Display Colors
|
16 million colors
|
|
Backlight
|
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
|
|
Brightness Control
|
16 Levels (Adjusted with touch panel or software)
|
|
Backlight Service Life
|
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 25%)
|
|
Application Memory
|
When using BLUE:FLASH EPROM 128MB
Removable System: No When using GP-Pro EX: - Media: FLASH EPROM - Screen Area: 64MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used. - User Font Area: 8MB - Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB. - Free Space: None Removable System: No |
|
Touch Panel Type
|
Resistive Film (analog, single-touch)
|
|
Touch Panel Resolution
|
1,024 x 1,024
|
|
Touch Panel Service Life
|
1,000,000 times or more
|
|
Serial (COM1)
|
Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 pin (socket)
|
|
Ethernet (LAN)
|
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 2
|
|
USB (TYPE-A)
|
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 % Output Current: 500 mA or less Communication distance: 5 m [16.4 ft.] or less |
|
USB (mini-B)
|
USB 2.0 (micro-B) x 1, Communication Distance: 5 m [16.4 ft]
|
General Specifications
|
International Safety Standards
|
      |
|---|---|
|
Rated Input Voltage
|
24 Vdc
|
|
Input Voltage Limits
|
19.2 to 28.8 Vdc
|
|
Allowable Voltage Drop
|
5 ms or less
|
|
Power Consumption
|
(Rear module) Max. 6.8 W
(Rear module)When power is not supplied to external devices: 3.5 W or less (Display module) Max. 3.6 W (Display module)When power is not supplied to external devices: 1.3 W or less |
|
In-Rush Current
|
30 A or less
|
|
Voltage Endurance
|
1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
|
|
Insulation Resistance
|
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
|
|
Surrounding Air Temperature
|
0 to 50 °C [32 to 122 °F]
|
|
Storage Temperature
|
-20 to +60 °C [-4 to 140 °F]
|
|
Ambient Humidity
|
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
|
|
Storage Humidity
|
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
|
|
Dust
|
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
|
|
Pollution Degree
|
For use in Pollution Degree 2 environment
|
|
Atmosphere
|
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
|
|
Vibration Resistance
|
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.] 9 to 150 Hz fixed acceleration: 9.8 m/s2 X, Y, Z directions for 10 cycles (approx. 100 min.) |
|
Concussion Resistance
|
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
|
|
Electrostatic Discharge Immunity
|
Contact Discharge Method: 6 kV
Air Discharge Method: 8 kV (IEC/EN61000-4-2 Level 3) |
|
Grounding
|
Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
|
|
Structure
|
Rear Module: IP20
Display Module: IP65F, UL 50/50E, Type 1, Type 4X (indoor use only), Type 12, Type 13 |
|
Cooling Method
|
Natural air circulation
|
|
Weight Approx.
|
Rear Module: 0.27 kg (0.6 lb) or less
Display Module: 0.49 kg (1.08 lb) or less |
|
External Dimensions
|
Rear Module: W145.6 x H108.23 xD 41.4 mm [W5.73 x H4.26 x D1.63 in] (excluding protrusions)
Display Module: W140.4 x H101.1 x D13.9 mm [W5.53 x H3.98 x D0.55 in] (excluding protrusions) |
|
Panel Cut Dimensions
|
Diameter 22.5 mm (0.88 in)
|
External Dimensions

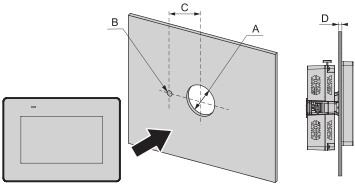

Panel Cut-Out
|
A
|
B
|
C
|
|
22.5 mm (+0/-0.3 mm)
(0.88 in [+0/-0.01 in]) |
4.0 mm (+0/-0.2 mm)
(0.15 in [+0/-0.007 in]) |
30.0 mm (+0/-0.3 mm)
(1.18 in [+0/-0.007 in]) |
Panel thickness recommended range:
|
Panel Material
|
Thickness range (D)
|
|
Steel
|
1.5...6.0 mm (0.06...0.23 in)
|
|
Glass fiber reinforced plastics (minimum GF30)
|
3.0... 6.0 mm (0.12... 0.23 in)
|
ข้อมูลสินค้า
ST6000 Series Lineup / Specifications
Wide Model
| Product Name | Display Size | Software | Model No | Color | Touch Panel | Interface | Details |
|---|---|---|---|---|---|---|---|
 ST-6700WA |
15" Wide (FWXGA) |
 |
PFXST6700WAD |
16 million colors |
Resistive film (analog) |
COM1: RS-232C COM2: RS-422/485 Ethernet x 2 USB Type A x 1 USB micro-B x 1 |
Specifications |
 |
PFXST6700WADE |
Specifications | |||||
 ST-6600WA |
12" Wide (WXGA) |
|
PFXST6600WAD | Specifications | |||
|
PFXST6600WADE | Specifications | |||||
 ST-6500WA |
10" Wide (WSVGA) |
|
PFXST6500WAD | Specifications | |||
|
PFXST6500WADE | Specifications | |||||
 ST-6400WA |
7" Wide (WVGA) |
|
PFXST6400WAD | Specifications | |||
|
PFXST6400WADE | Specifications | |||||
 ST-6200WA |
4" Wide (WQVGA) |
|
PFXST6200WAD | COM1: RS-232C/422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 |
Specifications | ||
|
PFXST6200WADE | Specifications |
4:3 Model
| Product Name | Display Size | Software | Model No | Color | Touch Panel | Interface | Details |
|---|---|---|---|---|---|---|---|
 ST-6500T |
10.4" (SVGA) | |
PFXST6500TADE | 16 million colors |
Resistive film (analog) |
COM1: RS-232C COM2: RS-422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 SD Card I/F |
Specifications |
 ST-6300T |
5.7" (VGA) | PFXST6300TADE | 262,144 colors | COM1: RS-232C COM2: RS-422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 |
Specifications |
