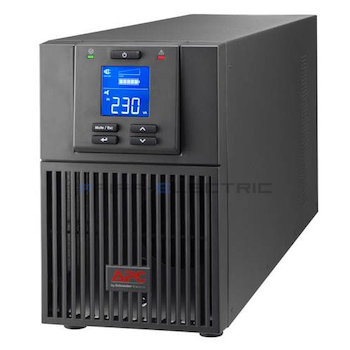

SRV1KI , UPS “APC” Easy UPS 1000VA/800W

Output

• Max Configurable Power (Watts) : 1000VA / 800 Watts
• Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
• Efficiency at Full Load : 88.0 %
• Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages : 220, 240
• Load Crest Factor : (3 : 1)
• Topology : Double conversion online
• Waveform type : Sine wave
• Bypass : Internal bypass (automatic and manual)

Input

• Input frequency : 40 – 70 Hz
• Input voltage range for main operations : 110 – 285 Adjustable (half load), 160 – 280V
• Number of Power Cords : 1
• Efficiency at Full Load : 88.0 %
• Other Input Voltages : 220, 240

Batteries & Runtime

• Battery type : Lead-acid battery
• Included Battery Modules : 1
• Typical recharge time : 4hour(s)
• Battery Charge Power (Watts) : 38 Watts
• Runtime : View Runtime Graph
• Efficiency : View Efficiency Graph

Communications & Management

• Interface Port(s) : DB-9 RS-232, USB
• Control panel : Multi-function LCD status and control console
• Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating : 600Joules

Physical

• Maximum Height : 223MM, 22.3CM
• Maximum Width : 145MM, 14.5CM
• Maximum Depth : 288MM, 0.0CM
• Net Weight : 9.3KG
• Shipping weight : 10.6KG
• Shipping Height : 330MM, 33.0CM
• Shipping Width : 235MM, 23.5CM
• Shipping Depth : 365MM, 36.5CM
• Color : Black

Environmental

• Operating Temperature : 0 – 40 °C
• Operating Relative Humidity : 0 – 95 (Non-condensing) %
• Operating Elevation : 0 – 3048meters
• Storage Temperature : -20 – 50 °C
• Storage Elevation : 0 – 15240meters
• Audible noise at 1 meter from surface of unit : 50.0dBA
• Online thermal dissipation : 372.0BTU/hr
• Protection Class : IP20

Conformance

• Approvals : CE, IEC 62040-1-1, IEC 62040-1-2
• Standard Warranty : 2Years (manufacturer’s defect)
