TRD-2T360BF

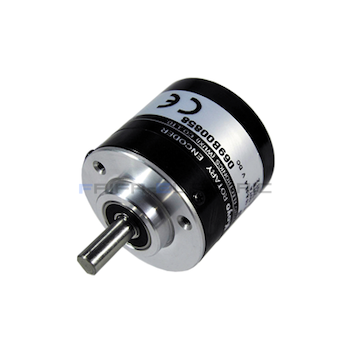

Koyo Encoder, Incremental, Light Duty, 360 Pulses per Revolution, 6mm Solid Shaft, 38mm Diameter Body, 12-24VDC, Push-Pull (Totem Pole), IP50 (Dust Proof), 1 meter Cable, Tinned Ends, Mounting Screws included

TRD-2T360BF

Rotary Encoder
อัตราค่าจัดส่ง

รายละเอียดสินค้า

  • Manufacturer : Koyo
  • Product No. : TRD-2T360BF
  • Product Type : Incremental Encoder
  • Operating voltage : BF = DC10.8V~26.4V
  • Signal format : Two-phase + home position output
  • Starting torque : Max. 0.01N·m(+20 C)
  • Max. allowable shaft load : Radial 30N
  • Max. allowable shaft load : Thrust 20N
  • Max. allowable speed : 5000rpm
  • Material Oil-resistant cable : PVC
  • Supply Voltage:DC10.8 to 26.4 V
  • Output Voltage("H"):[(Supply Voltage) -3 V] or more
  • Output Voltage("L"):0.4 V or lower
  • Load Supply Voltage:30 V DC or lower
  • Output Current(Inflow):Up to 30 mA
  • Output Current(outflow):Up to 10 mA
  • Maximum Response Frequency:200 kHz
  • Weight : 0.16 Kg
  • Shipping Weight : 2 Kg
