10"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC, GP-ProEX model

PFXST6500WADE

แบรนด์ : Pro-face สินค้า HMI ซีรีย์ : ST6000

฿ 34500.00

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

10.1”W Basic HMI 10.1"W 1024 x 600 pixel 16M colors
display with analog signal touch panel, Ethernet(RJ45)
x 2, USB Host, 24VDC, Serial Ports (COM 1 & 2) USB
ports, programmable with GP-Pro EX.

Features:

Aluminum Front Panel
16 Million Colors
Enhanced Cybersecurity
Easy to Install, No Tools Neede
Single Touch Analog Display
2 Ethernet Ports, Serial Ports, USB

Standard product information

Family	HMI
Series	ST6000 Series
Size	10" Wide
Model	PFXST6500WADE
Global Code	PFXST6500WADE
Product Features	10" DC Analog
Repair Status	✔ (Maintenance service is available, able to be maintained.)

Display specifications

Display type	TFT Color LCD
Display size	10.1" Wide
Resolution	1,024 x 600 pixels (WSVGA)
Effective display area	W222.72 x H125.28 mm [W8.77 x H4.93 in.]
Display colors	16 million colors
Backlight	White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life	50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 25%)
Brightness control	16 Levels (Adjusted with touch panel or software)
Touch panel type	Resistive Film (analog, single-touch)
Touch panel resolution	1,024 x 1,024
Touch panel lifetime	1,000,000 times or more

Electrical specifications

Rated input voltage	24 Vdc
Input voltage limits	19.2 to 28.8 Vdc
Allowable voltage drop	10 ms or less
Power consumption	Max. 12.6 W When power is not supplied to external devices: 9.6 W or less When screen turns off the backlight (standby mode): 4.6 W or less
In-rush current	30 A or less
Voltage endurance	1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
Insulation resistance	500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

Environmental specifications

Surrounding air temperature	0 to 50 °C [32 to 122 °F]
Storage temperature	-20 to +60 °C [-4 to 140 °F]
Ambient humidity	10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity	10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Dust	0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree	For use in Pollution Degree 2 environment
Corrosive gases	Free of corrosive gases
Air pressure (altitude range)	800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance	IEC/EN 61131-2 compliant 5 to 9 Hz single amplitude 3.5 mm [0.14 in.] 9 to 150 Hz fixed acceleration: 9.8 m/s2 X, Y, Z directions for 10 cycles (approx. 100 min.)
Concussion resistance	IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrical fast transient/burst	IEC 61000-4-4 2 kV: Power port (display unit) 1 kV: Signal ports
Electrostatic discharge immunity	Contact Discharge Method: 6 kV Air Discharge Method: 8 kV (IEC/EN61000-4-2 Level 3)

Memory

Application memory

When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 64MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: 8MB
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None
Removable System: No

Backup memory

When using GP-Pro EX:
- Screen Area: SRAM 320KB
- Variable Area: SRAM 64KB
Battery: Replaceable battery / Primary battery for clock data backup

Interface specifications

Serial (COM1)	Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
Serial (COM2)	Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug)
USB (Type A)	Conforms to USB 2.0 (Type A) x 1 Power supply voltage: 5 Vdc ±5 % Output Current: 500 mA or less Communication distance: 5 m [16.4 ft.] or less
USB (micro-B)	USB 2.0 (micro-B) x 1, Communication Distance: 5 m [16.4 ft]
Ethernet	IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 2

Structural specifications

Grounding	Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
Cooling method	Natural air circulation
Structure	IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure)*1
External dimensions	W273 x H203 x D47 mm [W10.75 x H7.99 x D1.85 in.]
Panel cut-out dimensions	W255 x H185 mm [W10.03 x H7.28 in.] Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*2
Weight	1.3 kg [2.87 lb] or less

The front face of the unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the unit's level of resistance is equivalent to these standards, oils that should have no effect on the unit can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the unit's front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the unit and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel's plastic cover. Therefore, prior to installing the unit, be sure to confirm the type of conditions that will be present in the unit's operating environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, be sure to replace the installation gasket regularly.

For dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

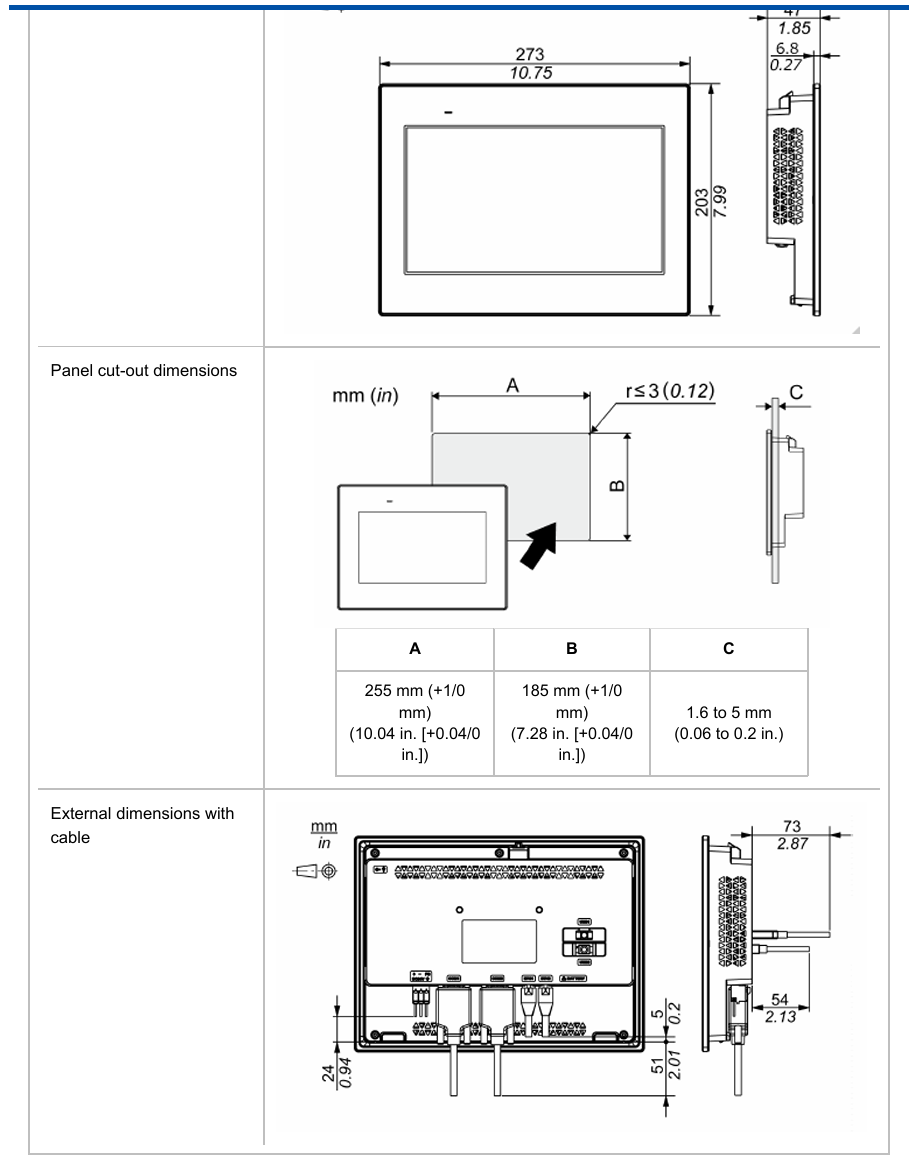

Dimensions

External dimensions

Panel cut-out dimensions

A	B	C
255 mm (+1/0 mm) (10.04 in. [+0.04/0 in.])	185 mm (+1/0 mm) (7.28 in. [+0.04/0 in.])	1.6 to 5 mm (0.06 to 0.2 in.)

External dimensions with cable

Performance Specifications
Part Numbers		PFXST6500WADE (GP-Pro EX)
Graphics Display Resolution		WSVGA TFT(1,024 x 600 Pixels)
Display Type and Size		TFT Color LCD (10.1-inch) Wide
Display Colors		16 million colors
Touch Panel		Resistive film (analog, single touch)
Effective Display Area		222.72 x 125.28 mm (8.77 x 4.93 in)
ToucPanel Resolution		1024 x 1024
Backlight		Backlight White LED (Not user replaceable. When replacement is required, contact customer support.)
Backlight Service Life		50,000 hours or more (continuous operation at 25 °C [77 °F] before backlight brightness decreases to 25%)
Brightness Control		16 levels (Adjusted with touch panel or software)
Interface	USB (Type A)	Connector: USB 2.0 (Type A) x 1, Power supply voltage: 5 Vdc ±5 %, Maximum current supplied: 500 mA, Communication distance: 5 m [16.4 ft.]
	USB (Type - microB)	Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft]
	Ethernet	IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 2
	Serial (COM1)	Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
	Serial (COM2)	Asynchronous Transmission: RS-422/485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)

ข้อมูลสินค้า

ST6000 Series Lineup / Specifications

Wide Model

Product Name	Display Size	Model No	Color	Touch Panel	Interface	Details
ST-6700WA	15" Wide (FWXGA)	PFXST6700WAD	16 million colors	Resistive film (analog)	COM1: RS-232C COM2: RS-422/485 Ethernet x 2 USB Type A x 1 USB micro-B x 1	Specifications
ST-6700WA	15" Wide (FWXGA)	PFXST6700WADE				Specifications
ST-6600WA	12" Wide (WXGA)	PFXST6600WAD				Specifications
ST-6600WA	12" Wide (WXGA)	PFXST6600WADE				Specifications
ST-6500WA	10" Wide (WSVGA)	PFXST6500WAD				Specifications
ST-6500WA	10" Wide (WSVGA)	PFXST6500WADE				Specifications
ST-6400WA	7" Wide (WVGA)	PFXST6400WAD				Specifications
ST-6400WA	7" Wide (WVGA)	PFXST6400WADE				Specifications
ST-6200WA	4" Wide (WQVGA)	PFXST6200WAD			COM1: RS-232C/422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1	Specifications
ST-6200WA	4" Wide (WQVGA)	PFXST6200WADE				Specifications

4:3 Model

Product Name	Display Size	Software	Model No	Color	Touch Panel	Interface	Details
ST-6500T	10.4" (SVGA)		PFXST6500TADE	16 million colors	Resistive film (analog)	COM1: RS-232C COM2: RS-422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1 SD Card I/F	Specifications
ST-6300T	5.7" (VGA)		PFXST6300TADE	262,144 colors	Resistive film (analog)	COM1: RS-232C COM2: RS-422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1	Specifications
