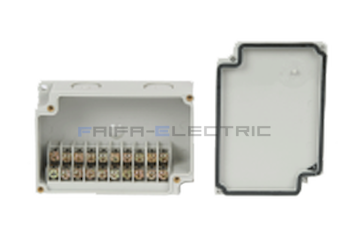

DS-PG-10P

Terminal block box ขั้วชิดริมกล่อง

DS-PG-10P

Box Terminal
อัตราค่าจัดส่ง

รายละเอียดสินค้า

→ Material : AC (PC 70% + ABS 30%) → This is UL94-5VA class, which realizes economic and excellent performance in low price. This Knock out Terminal Block box can make your job more easier.

Technical Specifications

Product Category Industrial Enclosures
Product Number DS-PG-10P
Product Name Terminal Block Box
Type Junction Box
Shape Rectangular
Length 75 inch (1905 mm)
Width 110 inch (2794 mm)

ข้อมูลสินค้า

Terminal Block BOX Series

• The Terminal Block Box is made from flame-retardant materials.
• It is a product that includes a knockout on the side of the product for fastening cables, and it is easy to work with.
• Depending on the customer’s desired size, we offer two types, a terminal-block-separated type and a terminal-block-integrated type.
• Acquired the IP67, IK10 certifications
Product Name Size
Width × Height × Depth(㎜) Width × Height × Depth(Inch)
DS-PG-4P 85x55x40 3.35x2.71x1.57
DS-PG-6P 90x75x40 3.54x2.95x1.57
DS-PG-10P 110x75x40 4.33x2.95x1.57
DS-PG-15P 100x200x70 3.94x7.87x2.76
DS-PG-20P 170x160x70 6.69x6.30x2.76
DS-PG-4PT 85x55x40 3.35x2.71x1.57
DS-PG-6PT 90x75x40 3.54x2.95x1.57
DS-PG-15PT 100x200x70 3.94x7.87x2.76
DS-PG-20PT 110x230x70 4.33x9.06x2.76
DS-PG-40PT 110x230x70 4.33x9.06x2.76
DS-MTB-4P 70x50x40 2.76x1.97x1.57
DS-MTP-6P 85x55x40 3.35x2.17x1.57
DS-MTB-10P 110x75x40 4.33x2.95x1.57
