RELAY TIME DELAY 300HR 5A 250V

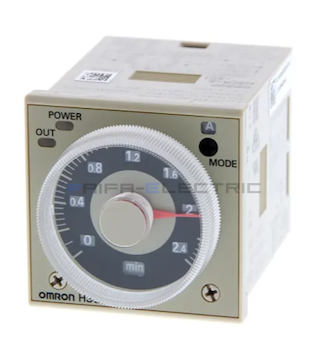

H3CR-A8E AC/DC24-48

แบรนด์ : Omron สินค้า Timer Delay ซีรีย์ : H3CR-A

฿ 0

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

RELAY TIME DELAY 300HR 5A 250V

ข้อมูลสินค้า

last update: April 1, 2020

11-pin Models

Output	Supply voltage	Input type	Time range	*Operating mode 2**	*Model 1**
Contact	100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC	No-voltage input	0.05 s to 300 h	Eight multi-modes: A, B, B2, C, D, E, G, J	H3CR-A
	24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC	No-voltage input		Eight multi-modes: A, B, B2, C, D, E, G, J	H3CR-A
	100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC	Voltage input		Eight multi-modes: A, B, B2, C, D, E, G, J	H3CR-AP
	24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC	Voltage input			H3CR-AP
	100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC	No-voltage input	0.1 s to 600 h		H3CR-A-301
	24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC		0.1 s to 600 h		H3CR-A-301
Transistor (Photocoupler)	24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC		0.05 s to 300 h		H3CR-AS

8-pin Models

Output	Supply voltage	Input type	Time range	*Operating mode 2**	*Model 1**
Contact	100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC	No-input available	0.05 s to 300 h	Five multi-modes: A, B, B2, E, J (Power supply start)	H3CR-A8
	24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC		0.05 s to 300 h		H3CR-A8
	100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC		0.1 s to 600 h		H3CR-A8-301
	24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC		0.1 s to 600 h		H3CR-A8-301
Transistor (Photocoupler)	24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC		0.05 s to 300 h		H3CR-A8S
Time-limit contact and instantaneous contact	100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC				H3CR-A8E
Time-limit contact and instantaneous contact	24 to 48 VAC/VDC (50/60 Hz)				H3CR-A8E

Accessories (Order Separately)

Adapter, Protective Cover, Hold down Clip, Setting Ring and Panel Cover

Name/specifications		Models
Flush Mounting Adapter		Y92F-30
		*Y92F-73 1**
		*Y92F-74 1**
		Y92F-38
Protective Cover		*Y92A-48B 2**
Hold-down Clip (Sold in sets of two)	For PF085A Socket	Y92H-8
Hold-down Clip (Sold in sets of two)	For PL08 or PL11 Sockets	Y92H-7
Setting Ring A		*Y92S-27 3**
Setting Ring B and C		*Y92S-28 3**
Panel Cover	Light gray (5Y7/1)	*Y92P-48GL 4**
Panel Cover	Black (N1.5)	*Y92P-48GB 4**

*1. The Y92A-48B Protective Cover and the Y92P-48G[] Panel Cover can not be used at the same time with the Y92F-73/
-74 Flush Mounting Adapter.
*2. The Y92A-48B Protective Cover is made from hard plastic. Remove the Protective Cover to change to set value. The
Y92F-73/-74 Flush Mounting Adapter and the Y92P-48G[] Panel Cover cannot be used at the same time with Y92A-
48B Protective Cover.
*3. The Y92S-27/-28 Setting Ring cannot be used alone. It must be used together with the Y92P-48G[] Panel Cover.
*4. The Y92A-48B Protective Cover and the Y92F-73/-74 Flush Mounting Adapter cannot be used at the same time with the
Y92P-48G[] Panel Cover.

Sockets

Timer	Round Sockets
Pin	Connection	Terminal	Models
11-pin	Front Connecting	DIN track mounting	P2CF-11
	Front Connecting	DIN track mounting (Finger-safe type)	P2CF-11-E
	Back Connecting	Screw terminal	P3GA-11
		Solder terminal	PL11
		Wrapping terminal	PL11-Q
		PCB terminal	PLE11-0
8-pin	Front Connecting	DIN track mounting	P2CF-08
		DIN track mounting (Finger-safe type)	P2CF-08-E
		DIN track mounting	PF085A
	Back Connecting	Screw terminal	P3G-08
		Solder terminal	PL08
		Wrapping terminal	PL08-Q
		PCB terminal	PLE08-0

Note: 1. The P2CF-[][]-E has a finger-protection structure. Round crimp terminals cannot be used. Use forked crimp
terminals.
2. The P3GA-11 and P3G-08 Socket can be used together with the Y92A-48G Terminal Cover to implement finger
protection.
3. For details, refer to your OMRON website.

Terminal Cover

Application	Model	Remarks
For back connecting socket	Y92A-48G	For P3G-08 and P3GA-11

Note: For details, refer to your OMRON website.
