Industrial Touch Panel PC 15.6'' ShareVDI
รายละเอียดสินค้า
![]()
15.6" Industrial PanelPCwith Intel® Core i3/i5/i7 Processor
Features
- 15.6’’ LED display with 10-point touch screen
- Industrial rugged design with IP-65 protection
- Intel core i3/i5/i7 processor
- 2 Ethernet/2 RS232&RS485/4USB ports
- Support wide voltage 12- 64V power supply
- Support 4G LTE module,mini PCIE / M.2 expansion
- Installation methods VESA / Stand / Embedded
- Support WIN10/WIN11,Windows IoT,Linux OS
Introduction
A15 is a Fanless rugged designed panel PC with 15.6 inch HD capacitive touch screen.The housing adopt full IP65 rating panel for front and back protection against dust&water,and with multiple installation methods available,includes VESA Mounting,Embedded and stand. A10 comes with 2 Ethernet, 2-4 Serial RS232/RS485s, 2-6 USB ports and 12V/24/48V power supply, which makes it ideal for industrial automation,EMS,KIOSK,Self-Service terminal etc.
Specifications
| Part No. |
| A15-5500 |
|
System | CPU | Intel®Core® I7-5500U(Optional:Intel Core I3/I5 processor) |
| Frequency | 2.3GHz~2.9GHz | |
| Cache | 3MB Intel Smart Cache | |
| Memory | 2*SO-DIMMslot(supportsingle-channel 1600/1333MHz DDR3L/1.35V internal memory ，max support 16GB) | |
| Storage | 1*M.2 M-Key 2280 SATA SSD 1*mSATA3.0 interface | |
| Network | 1000Mbps self-adaption RTL 8111H | |
|
I/O | 2~4x RS232/RS485(Upgradable) 2~6 x USB(Upgradable) 1xHDMI 2 x RJ45 Gigabit LAN 1 x VGA | |
| Extenable Port | 2 x COM; 1 x Phoenix terminal(Support 12-36V Power Supply) | |
| Graphics | Intel®HD Graphics 5500 | |

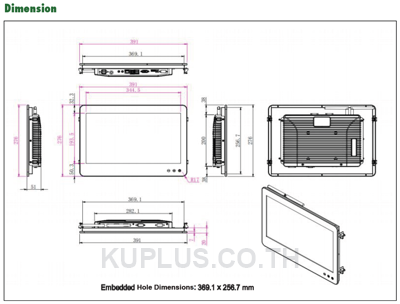

| Physical Characteristics | Dimensions | 391x 276 x 51 mm |
| Weight(Net)OS | 4.2kg | |
| OSSupport | Support | Windows (expect for XP) and Linux |
| PowerConsumption | Working Voltage | DC 12V ~ 5A |
| TDP | 15W | |
|
LCD | Display Type | LCD Module, a-Si TFT-LCD |
| Max. Resolution | 1920x 1080p | |
| Viewing Angle | 89 (left), 89 (right), 89(up), 89 (down) | |
| Luminance (cd/m2) | 350 | |
| Contrast Ratio | 1000:1 | |
| Aspect Ratio | 16:9 | |
|
Touchscreen | Touch Type | Capacitive Touch |
| Multi-touch | Supports up to 10 points | |
| Touch Accuracy | 2-2.5mm | |
| Response Time | < 10ms | |
|
Environment | Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 75 °C | |
| Relative Humidity | 0 ~ 95% (No Condensation) | |
| Certification | CE, FCC, ROHS, ISO | |
| Front Panel Protection | IP65 |
