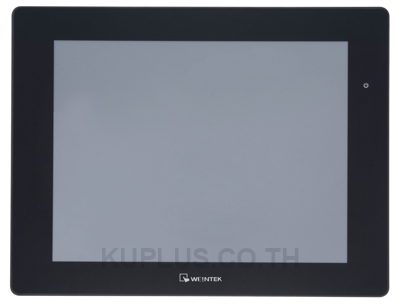

cMT2128X HMI with 12.1" TFT LCD Display Resistive Touch Screen Dual Ethernet ports Quad-core RISC CPU, 1GB RAM, 4GB Flash, 1xGbE LAN, 1xLAN, 3xCOM, 24VDC-in
ข้อมูลจำเพาะ
[]
รายละเอียดสินค้า
Specifications
cMT2128X HMI:
- 12,1" wide screen TFT display (16.7M colors)
- Resolution: 1024 x 768 pixels
- Brightness: 500 cd/m²
- Contrast ratio: 1000:1
- Touch screen: Analog resistive
- Processor: Quad-core RISC
- PLC interface: RS232/485, 1 x 10/100/1000 + 1 x 10/100 Mbps Ethernet
- USB ports: 1 USB 2.0 host port
(for connection of keyboard, mouse, barcode scanner, printer, etc.) - Remote monitoring and control of multiple cMT HMIs by using a tablet or smartphone
- Real Time Clock / Calendar
- Power supply: Isolated 24 VDC input
- Enclosure: Plastic
- Mounting: Panel mount, VESA mount 75 x 75 mm
- Comes with PET V1.0 Screen Protective Film
FEATURES:
| Display | Display | 12,1" TFT |
| Resolution (px) | 1024x600 | |
| Brightness (cd/m2) | 500 | |
| Contrast Ratio | 1000:1 | |
| Backlight Type | LED | |
| Backlight Life Time | >30000 hrs. | |
| Colors | 16.7M | |
| Touch Panel | Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% | |
| Memory | Flash (GB) | 4 |
| RAM (GB) | 1 | |
| Processor | Type | Quad-core RISC |
| I/O Port | SD slot | N/A |
| USB Host | USB 2.0 x 1 | |
| USB Client | N/A | |
| WiFi | M02 WiFi Expansion Module (Optional) | |
| Ethernet | LAN 1: 10/100/1000 Base-T x 1 | |
| COM port | Com.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Com.B: COM1 RS-2324W, COM3 RS-232 2W* | |
| CAN Bus | N/A | |
| RTC | Real Time Clock | Built-in |
| Power | Input power | 24±20% VDC |
| Power consumption | 1,2A@24VDC | |
| Power Isolation | Built-in | |
| Voltage resistance | 500 VAC (1 min.) | |
| Isolation Resistance | Exceed 50 MOhm at 500VDC | |
| Vibration Endurance | 10 to 25 Hz (X,Y,Z direction 2G 30 minutes) | |
| Specification | Enclosure | Plastic |
| Dimensions WxHxD | 317 x 243 x 41mm | |
| Panel Cutout | 305 x 231mm | |
| Weight | Approx. 1,7 kg | |
| Environment | Protection Structure | NEMA4 / IP66 Compliant Front Panel |
| Storage temperature | -20 ~ 60 ° C (-4°~ 140 ° F) | |
| Operating temperature | 0 ~ 55 ° C (32°~ 131 ° F) | |
| Relative Humidity | 10 % - 90 % (non-condensing) | |
| Certification | CE | CE marked |
| UL | cULus Listed | |
| Software | Free | Easy Builder Pro V6.08.01 or later version |
| Tariff | Custom Tariff number | 85371091 |
*Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
New 12” HMI Debut
Fast, smart, and stable, the cMT X Series has won much acclaim since its initial launch. Acknowledging ongoing demands for certain markets, Weintek is pleased to announce the release of the first 12” cMT X Standard HMI: cMT2128X. This new model incorporates new hardware and software designs that are needed to satisfy today’s requirements.
cMT2128X is equipped with powerful hardware, including a quad-core CPU, 4GB of Flash memory, 1GB of RAM, an 89° all-around wide viewing angle display, dual-Ethernet ports, and complete serial port options (RS232 2W/4W, RS485 2W/4W, SIEMENS MPI), all of which contribute to an exceptional operating experience. In terms of software, it offers many cMT X exclusive features, particularly in secure file transfer, multimedia support, and mobile/remote monitoring, all designed to improve work efficiency and HMI applicability.
