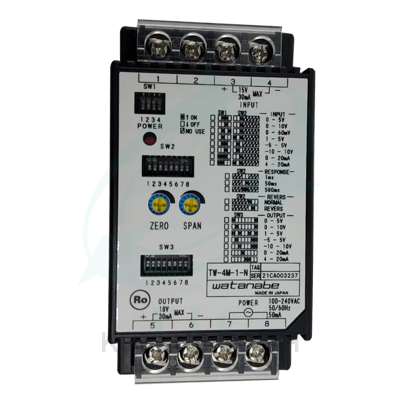

WATANABE Universal Isolate Transducer, 100-240 VAC
รหัสสินค้า: TW-4M-1-N
ยอดเข้าชม - ครั้ง
฿4,400
พร้อมส่ง
ซีรีส์: TW-4M
เพิ่มลงตะกร้าแล้ว
ไปที่ตะกร้า
รายละเอียดสินค้า
| TW4M Common Specifications | |
| Range Settings before shipment | input: 1 to 5 VDC, output: 4 -20mADC, accuracy of range settings before shipment: within +/- 0.25% F.S |
| Error caused by input/output range setting change: | ±1% F.S |
| Load resistance variation | ±0.06% F.S |
| Temperature characterisitc | ±0.02 % F.S/ºC |
| Frequency variation | ±0.2% F.S (based on 60Hz) |
| Response Time | less than 50 msec (0-90%) or less than 3msec |
| Front Adjustments | ±5% for zero and span |
| Insulation resistance | Between input and output/power supply: more than 100Mohm at 500VDC |
| Dielectric strength | Between input and output/power supply: for 1 min at 2000VAC |
| Power supply voltage | 100 to 240VAC or 24 VDC +/- 10% |
| Consuming current | less than 50mA ( at 100VAC) Less than 80mA ( at 24 VDC) |
| Operating ambient temp | -5 - 50ºC |
| Operating ambient humidity | Less than 90% RH (No-condensing) |
| Storage Temp | -10 to 70ºC |
| Storage Humidity | Less than 60% RH (no condensing) |
| weight | approx 130g |
