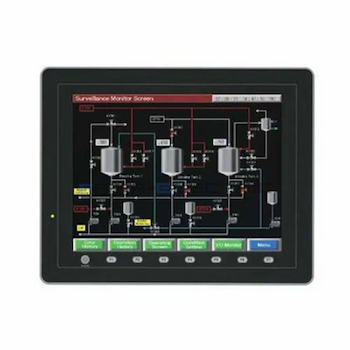

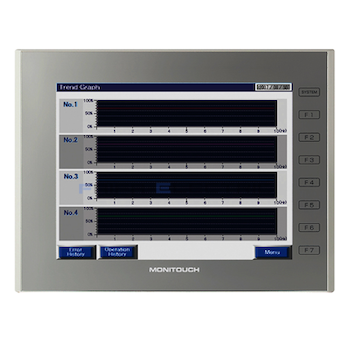

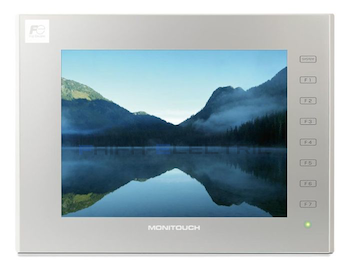

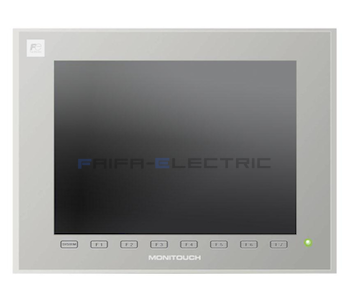

Fuji V9120ISD Monitouch 12" HMI, 800 x 600, Touch-screen: Analog resistive, Display: 64K TFT, Power: 24VDC

V9120iSD

แบรนด์ : Fuji Electric สินค้า HMI

สอบถามสินค้า

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Dimensions and Part Names

		V9120iS
Power supply	Rated voltage	100-240V AC/ 24V DC
	Permissible range of voltage	AC: -15%, +10%/ DC: ±10%
	Permissible momentary power failure	AC within 20ms, DC within 1ms
	Demand (maximum rating)	AC: 70VA or less/ DC: 28W or less
Insulation resistance		DC500V 10MΩ or more
Physical environment	Ambient temperature	0～50℃ ^*1
	Ambient humidity	85%RH or less (without dew condensation) ^*1
	Operation altitude	2,000 meters or lower
	Atmosphere	Not to be exposed to corrosive gas, or conductive dust
	Storage temperature	-10～60℃ ^*1
	Storage humidity	85%RH or less (without dew condensation) ^*1
	Overvoltage category	Category II
	Pollution degree	Pollution degree 2
Mechanical operating conditions	Resistance to oscillation	Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5-9Hz, pulsating with:3.5mm, 9-150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Mechanical operating conditions	Resistance to shock	Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total)
Electric operating conditions	Resistance to noise	Noise voltage: 1,500Vp-p, pulse width: 1μs, pulse rise time: 1ns
Electric operating conditions	Resistance to static discharge	Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions	Grounding	Grounding resistance: Less than 100Ω, FG/SG separation
	Structure	Protection structure: Front case: IP66, Type 4X/13 ^*2(when water-proof gasket is used), Rear case: IP20, single unit, installation method: panel mounting
	Cooling system	Natural air cooling
	Dimensions WHD(mm)	327.8×261.0×54.9
	Panel cutout (mm)	313.0×246.2（+0.5/-0）
	Weight (display only)	Approx. 2.5 kg
Case color		Light gray (black front housing for black model)
Material		PC resin

*1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.

Performance Specifications

Screen memory (FROM)		64MB
Backup memory (SRAM)		800KB
Display	Display device	TFT color LCD
	Resolution	800×600
	Display size	12.1″
	Colors	16.7 million ^*3
	Backlight	LED
	Backlight life	70,000 hours
Touch switch	Type	Analog resistance film
Function switch	Quantity	8
External interface	D-Sub 9-pin (CN1)	RS-232C/ RS-485(2-wire system)/ RS-422(4-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500^*4bps
	Modular 8-pin （MJ1/MJ2）	RS-232C/ RS-485(2-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
	SD card	One card slot provided as standard
	Ethernet	1ch, Baud rate: 100Mbps, 10Mbps
	Wireless LAN ^*5	Complies with IEEE802.11b/g/n (2.4GHz)
	USB	Type A,Type mini-B(Ver.2.0)
	Sound output	1ch provided as standard
Clock	Backup period	5 years (Ambient temperature 25°C)
Clock	Calendar accuracy	Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)
Standard	CE marking ^*6	EN61000-6-2,EN61000-6-4 ^*8
	UL･cUL ^*6	UL61010-1、UL61010-2-201^7、ANSI/ISA 12.12.01 ^2
	KC ^89	Compliant
	Radio Act ^*5	Japan: TELEC
Classification Standard ^28		Nippon Kaiji Kyokai (NK) American Bureau of Shipping (ABS) Lloyd's Register of Shipping (LR) Det Norske Veritas (DNV)

*2: DC products only. Hardware of Ver. b or later.
*3: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
*4: Only for Siemens MPI (Incompatible with DUR-00).
*5: Wireless LAN-compatible products only.
*6: DC products only.
*7: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.
*8: Wireless LAN compatible products are not supported.
*9: Black model not certified.
