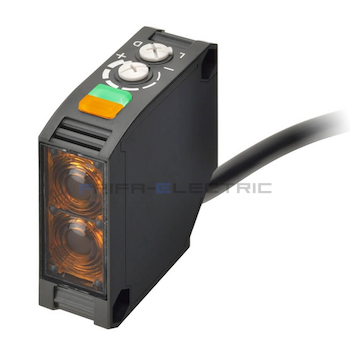

Omron Diffuse Photoelectric Sensor 2.5 m Detection Range Relay IP64 Block Style E3JK-DR11 2M
E3JK-DR11 2M
อัตราค่าจัดส่ง
รายละเอียดสินค้า
Omron Diffuse Photoelectric Sensor 2.5 m Detection Range Relay IP64 Block Style E3JK-DR11-C 2M
Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm)
| Sensing method | Diffuse-reflective |
|---|---|
| Sensing distance | White paper 300 x 300 mm: 2.5 m |
| Light source | Red LED (624 nm) |
| Connection method | Pre-wired models |
| Shape | Square type |
|---|---|
| Sensing method | Diffuse-reflective |
| Sensing distance | White paper 300 x 300 mm: 2.5 m |
| Differential distance | 20% max. of sensing distance |
| Light source | Red LED (624 nm) |
| Power supply voltage | 24 to 240 VAC±10% 50/60 Hz 24 to 240 VDC±10% ripple (p-p) 10% max. |
| Power consumption | 2 W max. |
| Control output | Relay output (SPDT) 250 VAC 3 A (cosφ= 1) max. 5 VDC 10 mA min. |
| Life expectancy (relay output) | Electrical: 100 thousand times or more (switching frequency 1800 times/hour) Mechanical: 50 million times or more (switching frequency 18000 times/hour) |
| Operation mode | Light-ON/Dark-ON selectable |
| Response time | 20 ms max. |
| Sensitivity setting | Single-turn adjustment |
| Ambient illuminance | Incandescent lamp: 3,000 lx Sunlight: 11,000 lx |
| Ambient temperature range (Operating) | -25 to 55 ℃ (with no freezing or condensation) |
| Ambient temperature range (Storage) | -40 to 70 ℃ (with no freezing or condensation) |
| Ambient humidity range (Operating) | 35 to 85% (with no condensation) |
| Ambient humidity range (Strage) | 35 to 95% (with no condensation) |
| Insulation resistance | 20 MΩ min. (500 VDC megger) |
| Dielectric strength | 1500 VAC 50/60 Hz 1 min |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Malfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y and Z directions Malfunction: 100 m/s2 3 times each in X, Y and Z directions |
| Degree of protection | IEC: IP64 |
| Connection method | Pre-wired models (Cable length 2 m) |
| Indicator | Operation indicator (orange), Stability indicator (green) |
| Weight | Package: Approx. 180 g |
| Accessories | Instruction manual, Mounting bracket |
| Material | Case: ABS Lens: Methacrylate resin Display: Methacrylate resin Adjustment: POM Cable: Polyvinyl chloride (PVC) |
ข้อมูลสินค้า
| Product | Description |
|---|---|
| Photoelectric sensor, square body, red LED, diffuse, 2.5m, NPN, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, red LED, diffuse, 2.5 m, PNP, L-ON/D-ON selectable, 2 m cable | |
| Photoelectric sensor, square body, red LED, diffuse, 2.5 m, AC/DC, relay, L-ON/D-ON selectable, 2 m cable | |
| Photoelectric sensor, square body, red LED, diffuse, 300mm, AC/DC, relay, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, IR LED , diffuse, 2.5m, AC/DC, relay, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, IR LED , diffuse, 300mm, AC/DC, relay, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, red LED, retro-reflective, polarized, 6m, NPN, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, red LED, retro-reflective, non-polarized, 7 m, PNP, L-ON/D-ON selectable, 2 m cable | |
| Photoelectric sensor, square body, red LED, retro-reflective, polarized, 6m, PNP, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, red LED, retro-reflective, non-polarized, 7m, AC/DC, relay, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, red LED, retro-reflective, polarized, 6m, AC/DC, relay, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, red LED, retro-reflective (polarized), 6m, AC/DC, Relay, 5 m cable | |
| Photoelectric sensor, square body, red LED, through-beam, 40m, PNP, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, infrared LED, through-beam, 5 m, PNP, L-ON/D-ON selectable, 2 m cable | |
| Photoelectric sensor, square body, red LED, through-beam, 40m, AC/DC, relay, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, red LED, through-beam, 40 m, AC/DC, relay, L-ON/D-ON selectable, 5 m cable | |
| Photoelectric sensor, square body, red LED, through-beam, 5 m, AC/DC, relay, L-ON/D-ON selectable, 2m cable | |
| Photoelectric sensor, square body, IR LED , through-beam, 5 m range, AC/DC, relay, L-ON/D-ON selectable, 2 m cable | |
| Photoelectric sensor, square body, IR LED , through-beam, 5 m range, AC/DC, relay, L-ON/D-ON selectable, 2 m cable, brackets included |
Accessories
Reflectors for retro-reflective photoelectric sensors
สินค้าแน่ะนำ
Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 6 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm)
E3JK-RR12-C-2M
฿ 0
Omron Diffuse Photoelectric Sensor 2.5 m Detection Range Relay IP64 Block Style E3JK-DR11-C 2M
E3JK-DR11-C 2M
฿ 1100

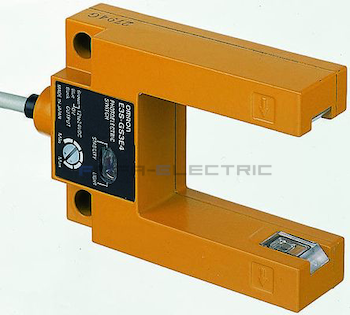

E3S-GS3E4 5M,Photoelectric sensor, slot, 30 mm, DC, 3-wire, NPN, 5 m cable
